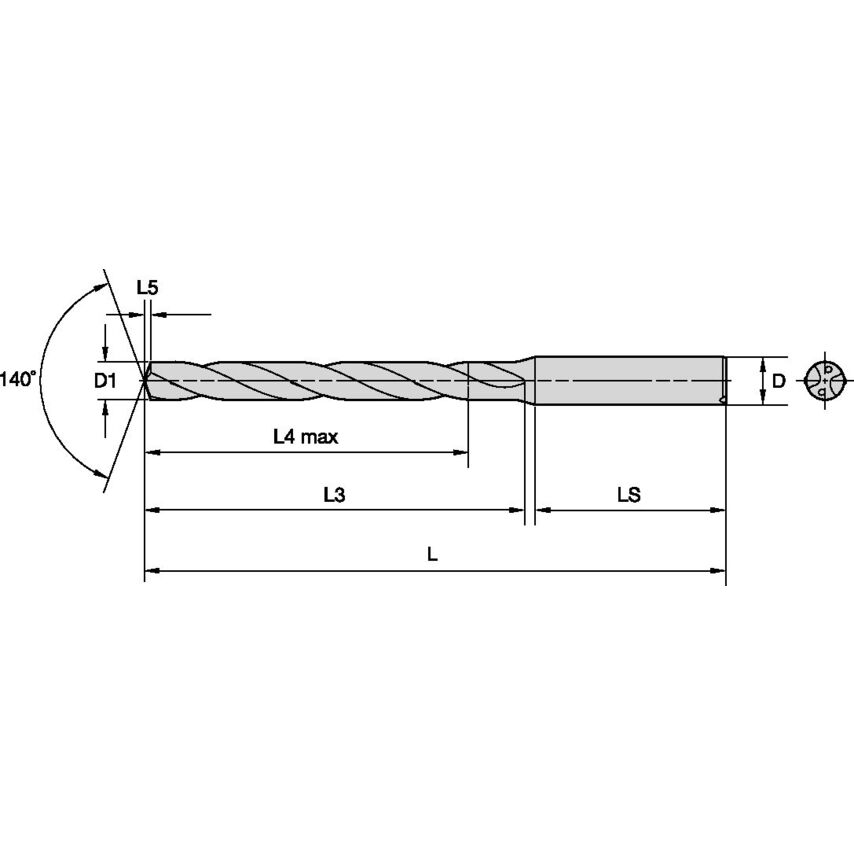

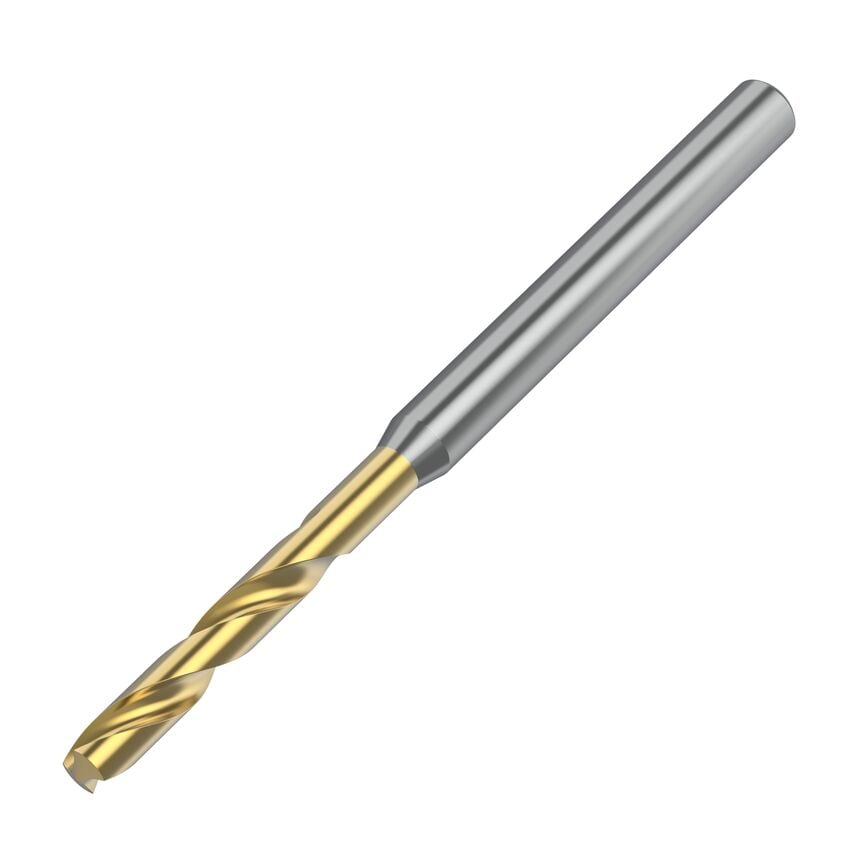

GOdrill Wide Range of Materials Through CoolantSolid Carbide Drills
| Drill Diameter Tolerance | -0.012000 to 0.000000mm |
| Helix Angle | 32.282 |
| Carbide Drill Type | Carbide High Performance |
| MFR Part No. | 4151113 |
| Adapter Style | Straight-Cylindrical |
| Adapter / Shank / Bore Diameter | 6.0000mm |
| Coolant Diameter | 0.5600mm (0.0945in) |
| Diameter x Depth | 3xD |
| Flute Construction | Helical Flute |
| Assembly Length | 34.4mm |
| Drill Diameter | 3.7000mm |
| Material | Carbide |
| Coolant Delivery | Coolant Through |
| Functional Length | 61.4000mm |
| Helix Type | Right Hand Helix/Flute |
| Drill Point | 0.6mm |
| Point Angle | 140\u00b0 |
| Standards Met | DIN 6535 |
| Shank Diameter | 6mm |
| Flute Length | 20mm | 20.0000mm |
| Overall Length | 62mm | 62.0000mm |
| Cutting Direction | Right Hand |
| Shank Length | 36.0000mm |
| Unit Measured | Metric |
| Number of Flutes | 2 |
| Coolant Supplied | Yes |
| Adapter Type | Cylindrical |
| Series | B051A |
| Finish/Coating | TiN |
| ISO Category | K | M | N | P | S |
| Material Grade | KC7315 |
| Primary Material | Stainless Steel |
| Hand Preference | Right |
| Drill Depth | 14mm | 14.0000mm |
| Shank Diameter Tolerance | H6 |
| Clamping Length | 36mm |
| Flute Type | Spiral |
