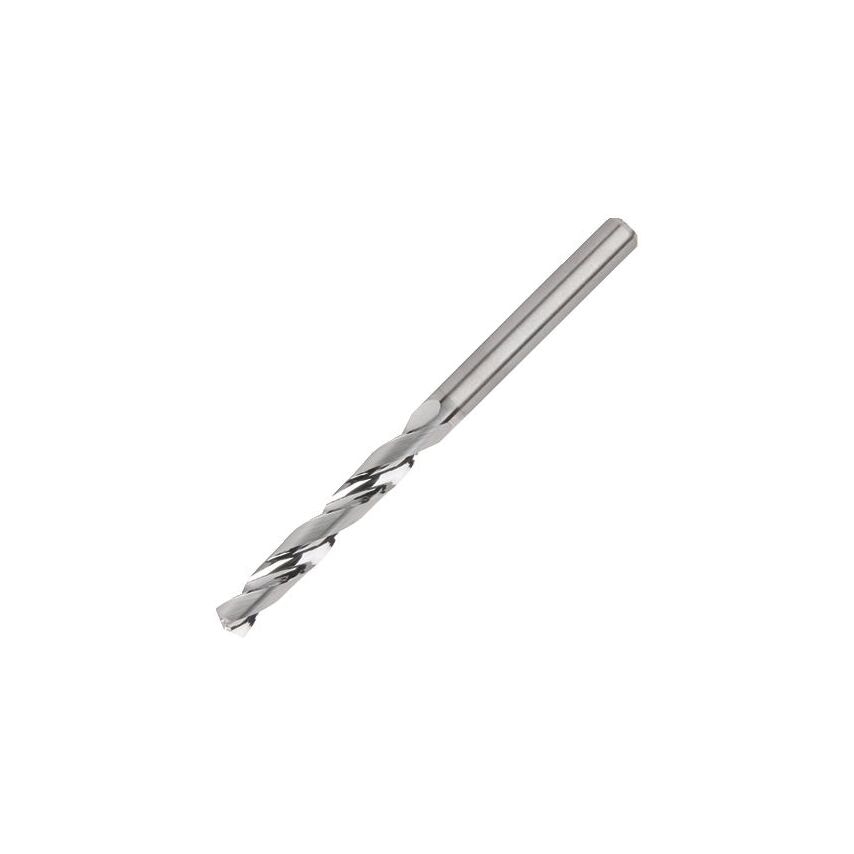

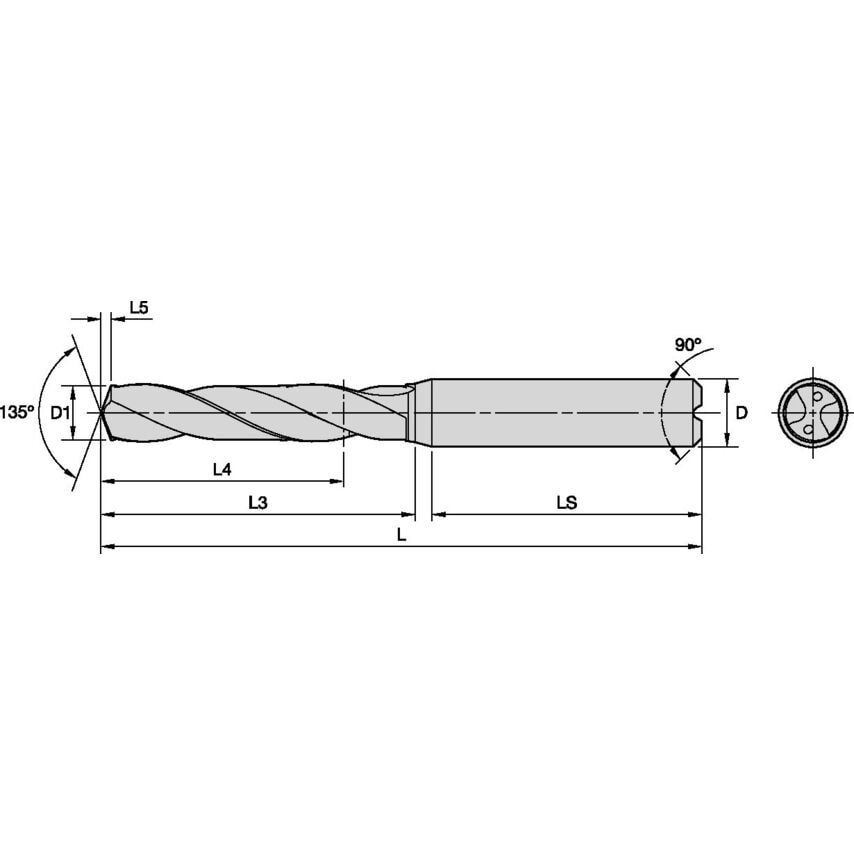

HPS Beyond Drills Aluminum Through CoolantHigh-Performance Solid Carbide Drills
| Primary Material | Non-Ferrous Materials |
| Overall Length | 79mm | 79.0000mm |
| Adapter Type | Cylindrical |
| Helix Type | Right Hand Helix/Flute |
| Drill Point | 1.366mm |
| Unit Measured | Metric |
| Shank Length | 36.0000mm |
| Clamping Length | 36mm |
| Drill Depth | 29mm | 29.0000mm |
| Hand Preference | Right |
| Finish/Coating | Uncoated |
| Assembly Length | 41.634mm |
| Adapter Style | MQL Drill Shank |
| Drill Diameter | 7.4000mm |
| Functional Length | 77.6340mm |
| Helix Angle | 28.398 |
| Adapter / Shank / Bore Diameter | 8.0000mm |
| Flute Construction | Helical Flute |
| Number of Flutes | 2 |
| Drill Diameter Tolerance | 0.006000 to 0.021000mm |
| Material | Carbide |
| MFR Part No. | 5434730 |
| Coolant Supplied | Yes |
| Flute Length | 41mm | 41.0000mm |
