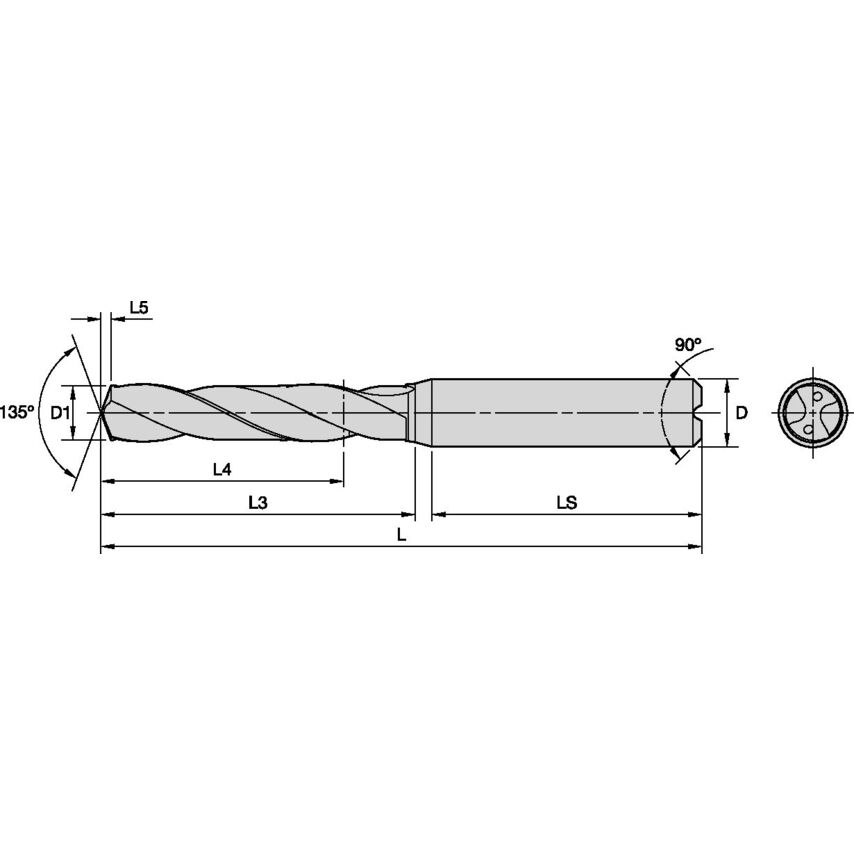

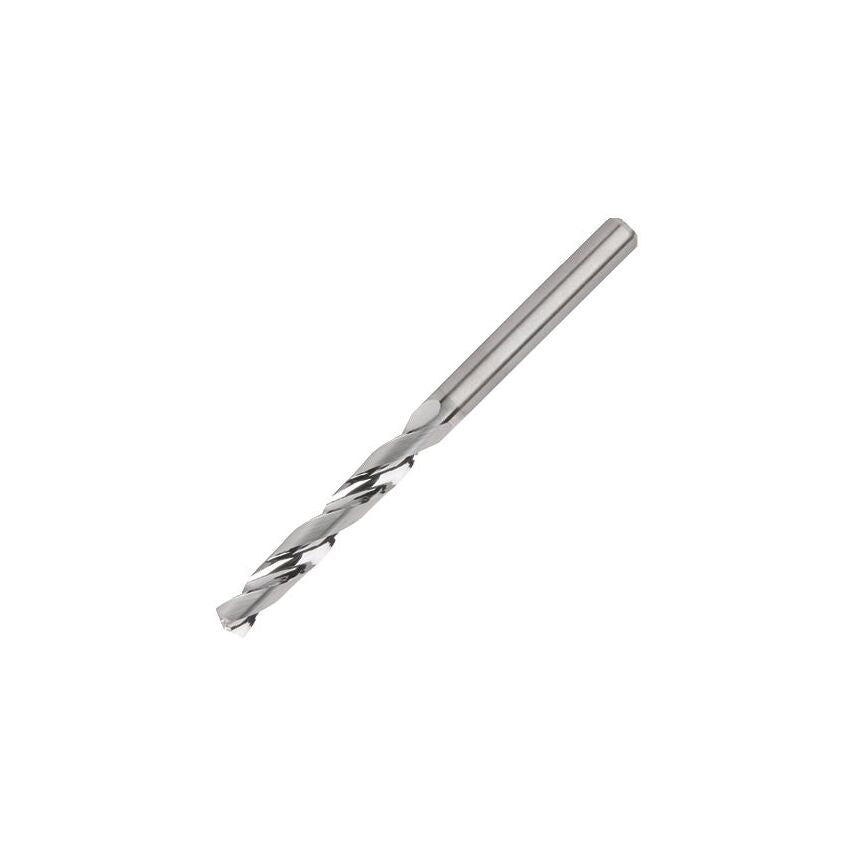

HPS Beyond Drills Aluminum Through CoolantHigh-Performance Solid Carbide Drills
| Coolant Supplied | Yes |
| Overall Length | 89mm | 89.0000mm |
| Flute Length | 47mm | 47.0000mm |
| Shank Length | 40.0000mm |
| Adapter Type | Cylindrical |
| Material | Carbide |
| Hand Preference | Right |
| Flute Construction | Helical Flute |
| Primary Material | Non-Ferrous Materials |
| MFR Part No. | 5434735 |
| Functional Length | 87.4620mm |
| Helix Type | Right Hand Helix/Flute |
| Unit Measured | Metric |
| Adapter / Shank / Bore Diameter | 10.0000mm |
| Adapter Style | MQL Drill Shank |
| Finish/Coating | Uncoated |
| Number of Flutes | 2 |
| Helix Angle | 27.176 |
| Drill Point | 1.538mm |
| Drill Depth | 35mm | 35.0000mm |
| Drill Diameter | 8.3340mm |
| Drill Diameter Tolerance | 0.006000 to 0.021000mm |
| Assembly Length | 47.462mm |
| Clamping Length | 40mm |
