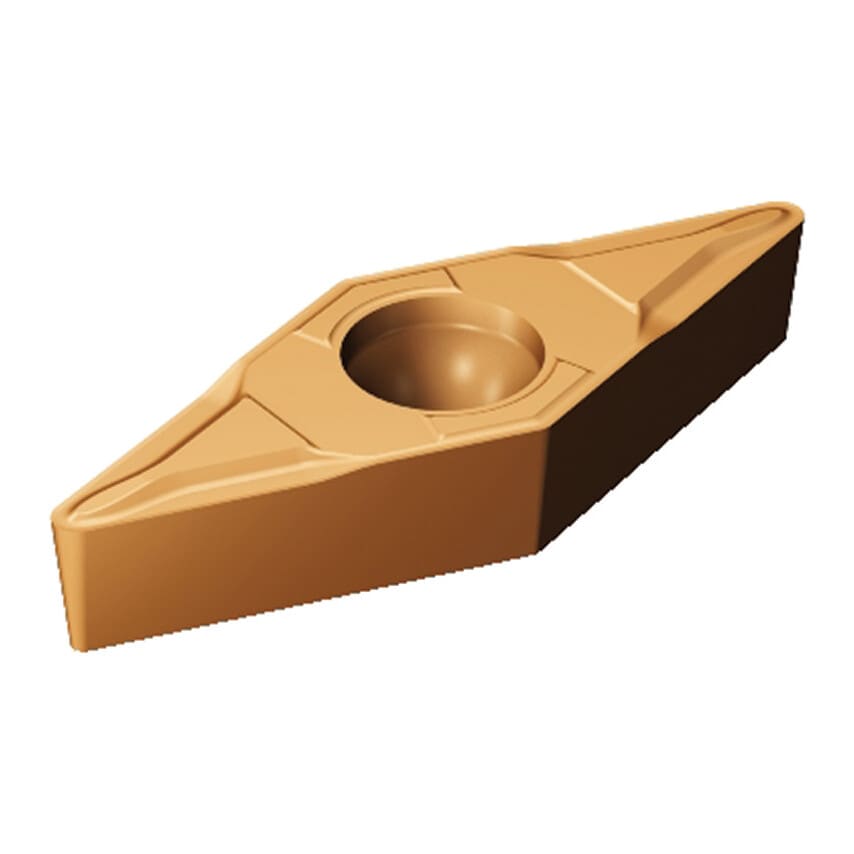

VBMT turning insert 35 rhombic inserts feature a PVD TiAlN+TiAlN coated grade and hard carbide substrate for use on stainless steel and heat resistant alloys.
Features and Benefits
Hard carbide co struction for increased strength
PVD TiAlN+TiAlN coating for increased heat and wear resistance
Standards
Insert Grade 1125
(M10-M30)(S20-S30) PVD (Ti,Al)N+(Al,Cr)2O3
| Cutting Edge Length | 11.0709mm |
| Clearance Angle | 5\u00b0 |
| Chipbreaker | UF |
| Insert Size | 110202 |
| Product Type | Turning Inserts |
| Inscribed Circle | 6.35mm |
| Material | Carbide |
| Finish/Coating | PVD TiAIN+AICr203 |
| Material Application | Stainless Steels | Steels |
| ISO Category Grade | M | P | S |
| MFR Part No. | 12460276 |
| Thickness | 2.38125mm |
| Cutting Direction | Neutral |
| Corner Radius | 0.2 |
| ISO Cut | M25 | P25 | S25 |
| Manufacturer Grade | GC1025 |
| Shape | 35\u00b0 Rhombic |
| ISO Designation | VBMT 110202-UF |
| Insert Style | VBMT |
| Pack Quantity | 1 |
| ISO Category | M | P | S |
