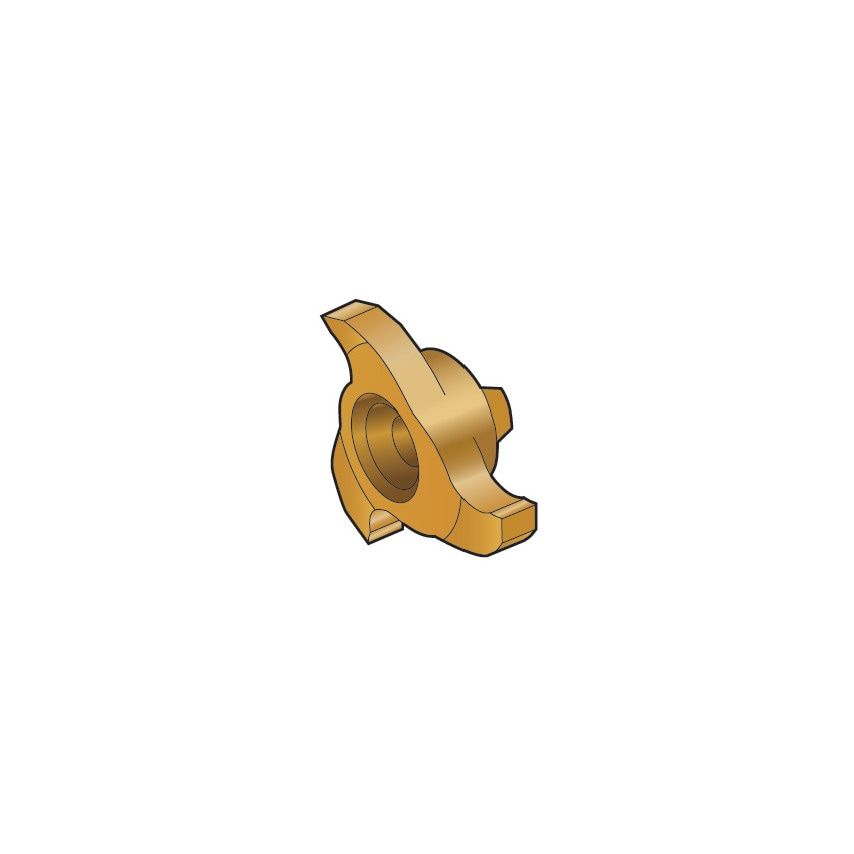

Product Range: CoroMill 327Tool Type: Thread millingA versatile cutter which can be used for many types of grooves, threads and chamfers; machining of eccentric components such as gearbox casings, and high volume assemblies, mainly in machining centres and rotating units in lathes.Features & Benefits- Flexible cutter with multiple edges for many types of applications- Low cutting forces- Large program with different shank lengths and diametersApplication- Circlip grooving, Thread milling, Groove milling, Chamfering, both front and back
| Cutting Width | 3mm |
| MFR Part No. | 26010124 |
| Connection Diameter | 14.3mm |
| Grade | 1025 |
| Weight | 27.3g |
| Coating Process Type | PVD |
| CoroPak | 11.1 |
| Functional Length | 6.25mm |
| Coating Type | TiAlN+TiN |
| Maximum Cutting Depth | 10mm |
| Through Hole Function Property | Yes |
| Unit Measured | Metric |
| Cutting Diameter | 34.7mm |
| Rotational Speed Maximum | 50000 1/min |
| Coolant Entry Style | Without Coolant |
| ISO Cutting Tool Material | Coated WC or Cermet |
