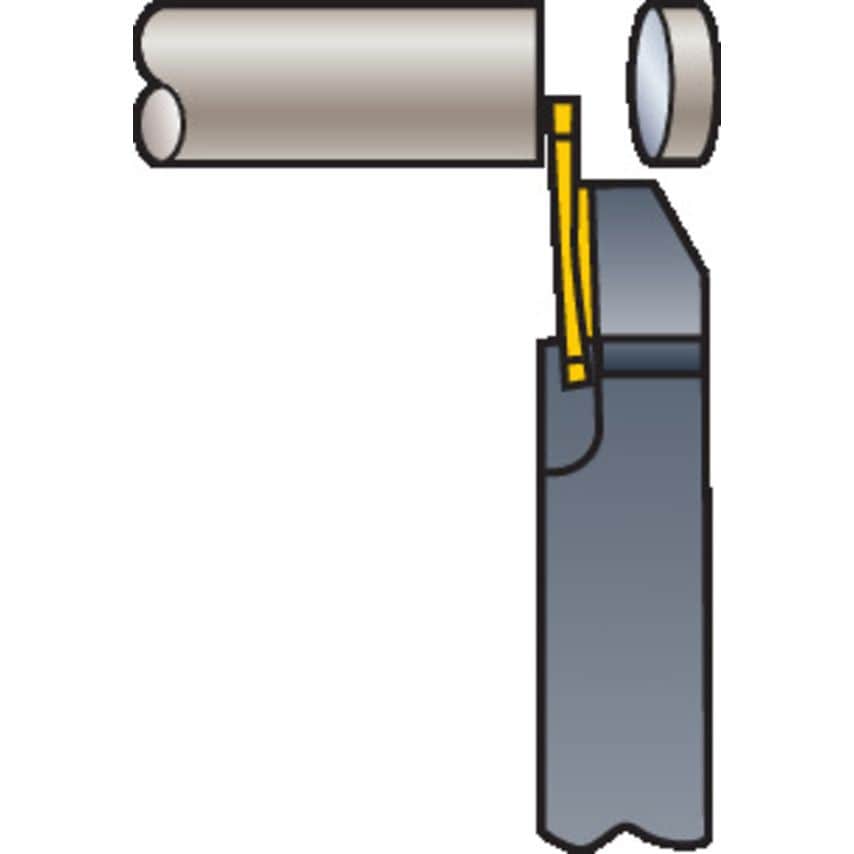

Product Range: CoroCut 3CoroCut 3 is a complete solution for narrow precision grooving and circlip grooving. It is your first choice for cost efficient parting-off in mass production you can save kilometers of material by reducing the insert width with CoroCut 3.Features & Benefits- Cost-efficient shallow parting and grooving- Precision grooving down to the smallest widths- Close tolerancesApplication- Geometries and grades for ISO P, M, K, and S materials- Parting off diameters less than 12 mm (0.5 inch) or thin walled rings- First choice for parting off bearing rings

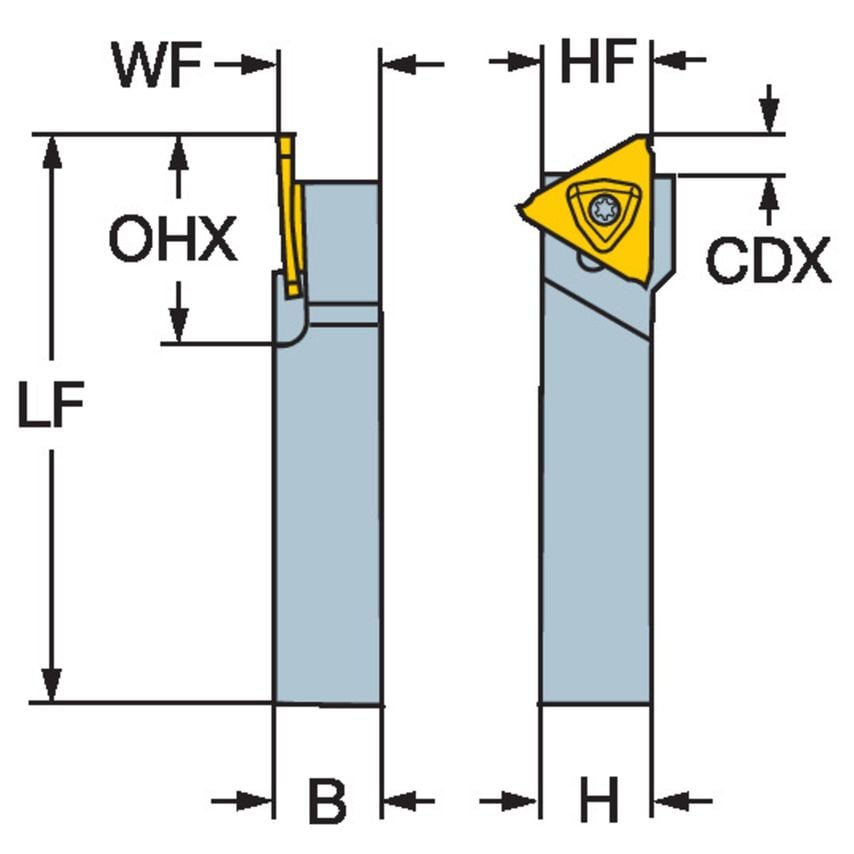

| CoroPak | 6.1 |
| Maximum Cutting Depth | 6.4mm |
| Hand Preference | Left |
| Coolant Exit Style | 0 |
| Shank Width | 32mm |
| Unit Measured | Metric |
| Weight | 1.26kg |
| Workpiece Side Body Angle | 0\u00b0 |
| Through Hole Function Property | Yes |
| Functional Length | 170mm |
| MFR Part No. | 12091015 |
| Coolant Entry Style | Without Coolant |
| Maximum Overhang | 23.012mm |
