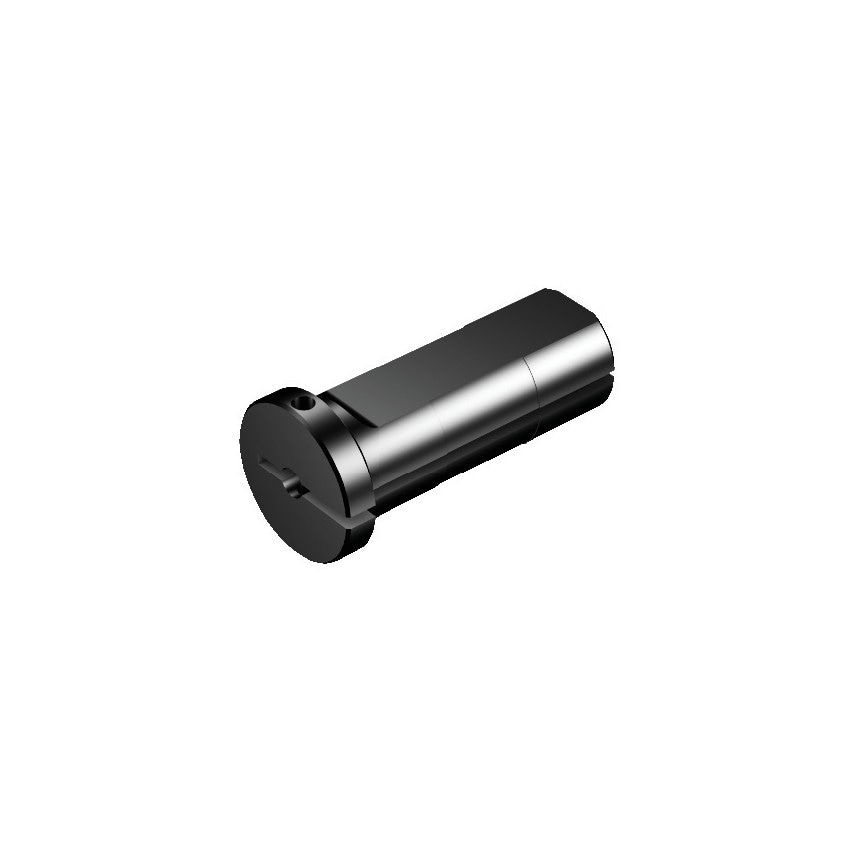

Sleeves for correct mounting of cylindrical bars, also for high coolant pressureEasyFix sleeves are a solution for cylindrical boring bars reducing set-up time. A spring plunger mounted in the sleeve clicks into a groove in the bar to guarantee the correct centre height. The slot in the cylindrical sleeve is metallic sealed which allows the existing coolant supply system to be used. The metallic sealing offers good performance also for high coolant pressure.Features & Benefits- Spring plunger solution (spring loaded ball) in the sleeve and the bar groove gives correct centre height of the insert every time you make a tool set-up.- Metallic sealing offers good performance for coolant pressure up to 150 bar (2200 psi).- Fast set-up time- Simple to use- Extended tool life- Excellent surface finish- Correct cutting edge centre height and positionApplication- The EasyFix sleeves fit a wide range of products: CoroTurn 107, CoroTurn 111, Silent Tools damped boring bars, CoroCut MB, CoroCut QI, CoroCut 1-2- Do not use EasyFix sleeves for boring bars with flats, as you wont attain the advantage of finding the correct centre height of the bar without the groove. A bar with flats normally clamps with screws from the top and locates on the flats of the bar.
| Through Hole Function Property | Yes |
| CoroPak | 4.2 |
| Coolant Exit Style | 1 |
| Connection Diameter | 25.4mm |
| Weight | 217.2g |
| MFR Part No. | 11797940 |
| Unit Measured | Metric |
| Functional Length | 5mm |
| Body Diameter | 1.23622in |
| Sealing Property | No |
| Coolant Entry Style | 1 |
| Body Half Taper Angle | 0\u00b0 |
| Overall Length | 55mm |
