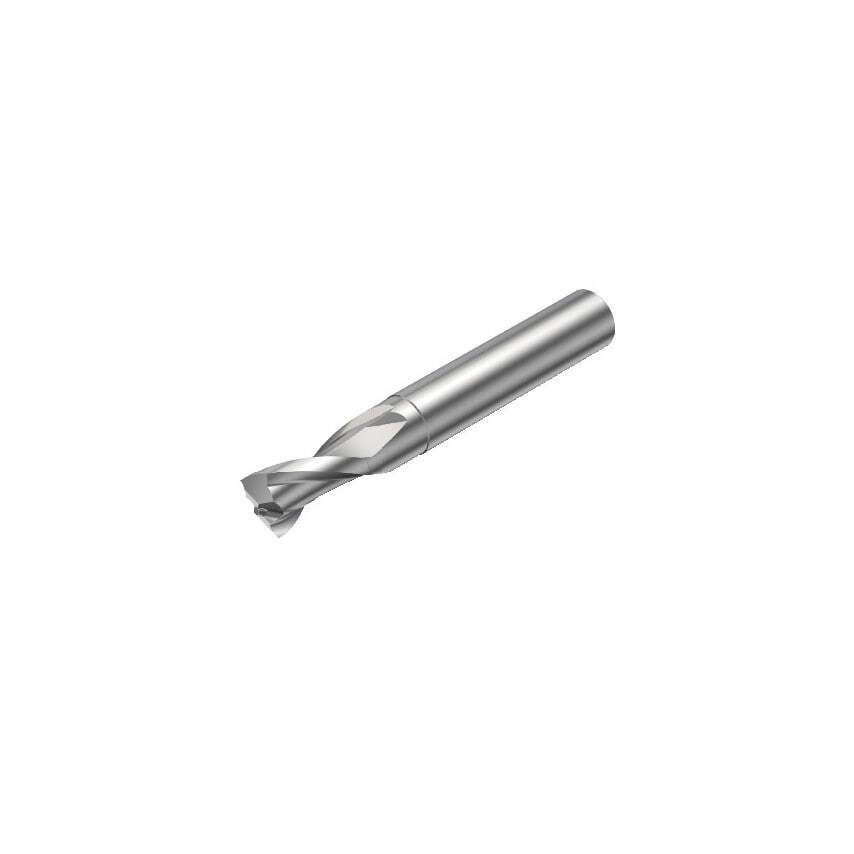

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Corner Radius | 0.15mm |
| ISO Cutting Tool Material | Uncoated WC |
| Rotational Speed Maximum | 17900 1/min |
| Coating Process Type | Uncoated |
| Through Hole Function Property | Yes |
| Maximum Depth of Cut | 30mm |
| Material | Carbide |
| Maximum Cutting Depth | 1.18in |
| Cutting Diameter | 20mm |
| Basic Standard Group | Coromant |
| Coating Type | Uncoated |
| Finish/Coating | Uncoated |
| Product Type | CoroMill Plura End Mill |
| Body Half Taper Angle | 30\u00b0 |
| Connection Diameter | 80mm |
| Unit Measured | Metric |
| MFR Part No. | 26259996 |
| Coolant Entry Style | Without Coolant | Without Coolant |
| CoroPak | 12.2 |
| Usable Length | 60mm |
| Center Cutting Capability | Yes |
| Weight | 0.4kg |
| Maximum Ramping Angle | 15\u00b0 |
| Standards Met | COROMANT |
| Grade | H10F |
| Functional Length | 104mm |
