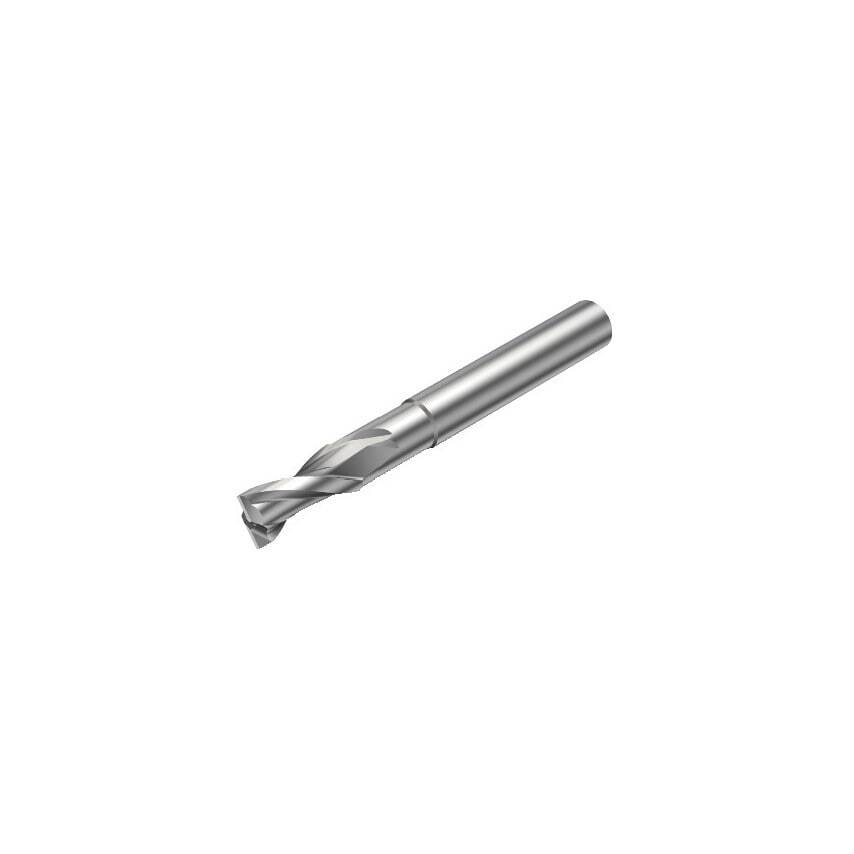

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Unit Measured | Metric |
| ISO Cutting Tool Material | Uncoated WC |
| Connection Diameter | 25mm |
| Functional Length | 89mm |
| Material | Solid Carbide |
| Product Type | CoroMill Plura End Mill |
| Corner Radius | 0.15mm |
| MFR Part No. | 26260009 |
| Basic Standard Group | Coromant |
| Cutting Diameter | 10mm |
| Body Half Taper Angle | 30\u00b0 |
| Center Cutting Capability | Yes |
| Rotational Speed Maximum | 66500 1/min |
| Standards Met | COROMANT |
| Maximum Cutting Depth | 15mm |
| Coolant Entry Style | Without Coolant |
| Coating Process Type | Uncoated |
| Usable Length | 40mm |
| Grade | H10F |
| Maximum Depth of Cut | 15mm |
| Weight | 98.6g |
| Finish/Coating | Uncoated |
| Maximum Ramping Angle | 15\u00b0 |
| Through Hole Function Property | Yes |
| CoroPak | 12.2 |
| Coating Type | Uncoated |
