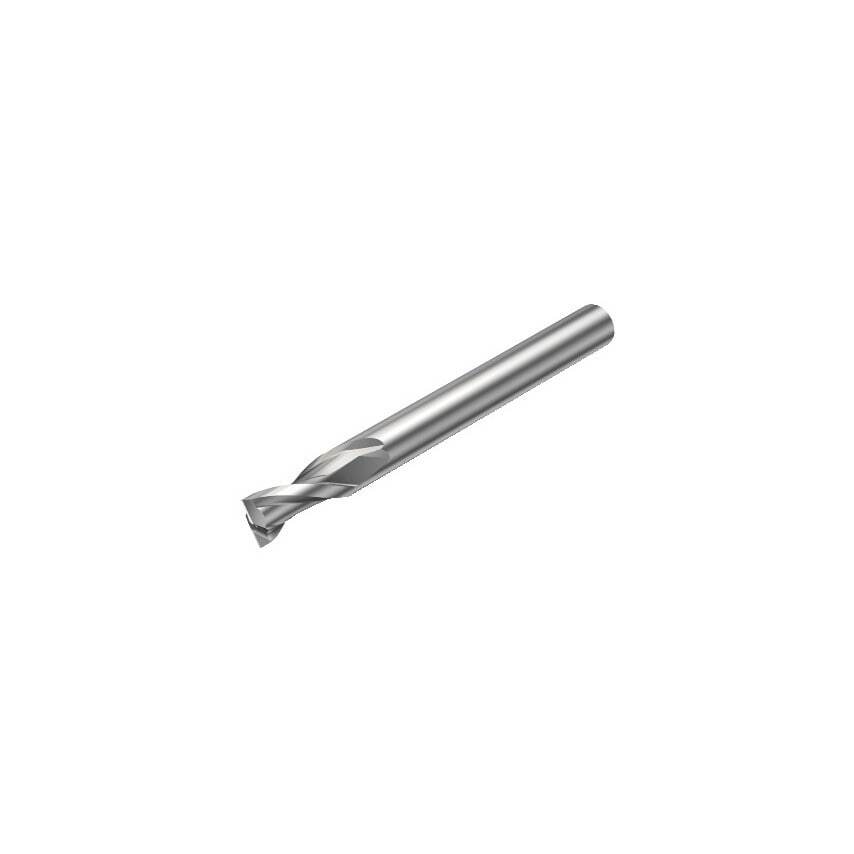

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Material | Solid Carbide |
| Maximum Cutting Depth | 8mm |
| CoroPak | 12.2 |
| Functional Length | 70mm |
| ISO Cutting Tool Material | Uncoated WC |
| Maximum Ramping Angle | 15\u00b0 |
| Unit Measured | Metric |
| Coating Type | Uncoated |
| Usable Length | 42mm |
| MFR Part No. | 26260020 |
| Finish/Coating | Uncoated |
| Corner Radius | 0.15mm |
| Standards Met | COROMANT |
| Grade | H10F |
| Basic Standard Group | Coromant |
| Rotational Speed Maximum | 80000 1/min |
| Connection Diameter | 4.8mm |
| Center Cutting Capability | Yes |
| Through Hole Function Property | Yes |
| Coolant Entry Style | Without Coolant |
| Cutting Diameter | 5mm |
| Maximum Depth of Cut | 8mm |
| Coating Process Type | Uncoated |
| Product Type | CoroMill Plura End Mill |
