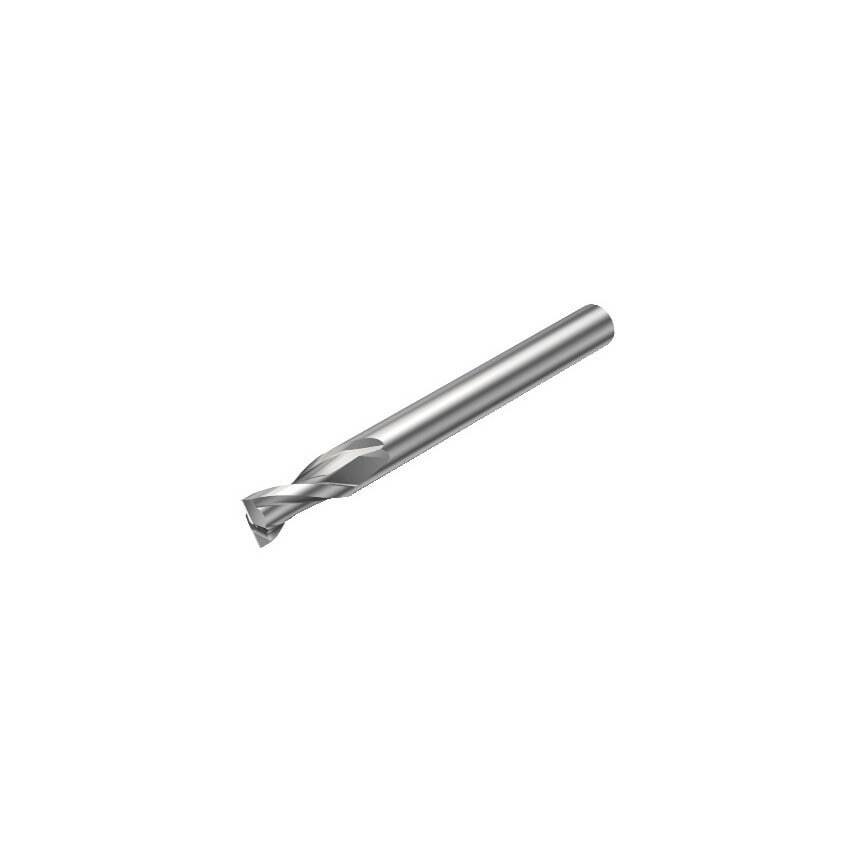

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Weight | 48.1g |
| Usable Length | 64mm |
| Basic Standard Group | Coromant |
| Functional Length | 100mm |
| Standards Met | COROMANT |
| Cutting Diameter | 6mm |
| Maximum Depth of Cut | 9mm |
| Coolant Entry Style | Without Coolant |
| Through Hole Function Property | Yes |
| Unit Measured | Metric |
| Coating Process Type | Uncoated |
| Rotational Speed Maximum | 80000 1/min |
| MFR Part No. | 26260021 |
| Maximum Cutting Depth | 9mm |
| Center Cutting Capability | Yes |
| Material | Carbide |
| Product Type | CoroMill Plura End Mill |
| CoroPak | 12.2 |
| Connection Diameter | 5.8mm |
| Corner Radius | 0.15mm |
| Finish/Coating | Uncoated |
| Maximum Ramping Angle | 15\u00b0 |
| Grade | H10F |
| ISO Cutting Tool Material | Uncoated WC |
| Coating Type | Uncoated |
