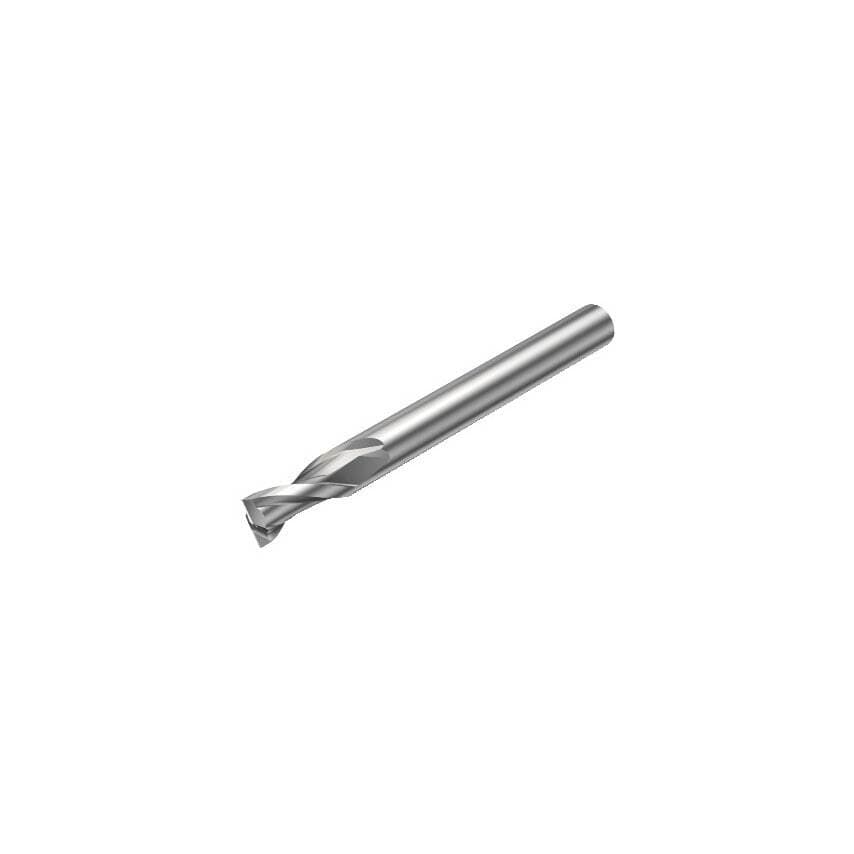

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Material | Carbide |
| Maximum Ramping Angle | 15\u00b0 |
| Cutting Diameter | 20mm |
| Center Cutting Capability | Yes |
| Connection Diameter | 12mm |
| Maximum Cutting Depth | 26mm |
| Grade | H10F |
| Coating Process Type | Uncoated |
| Through Hole Function Property | Yes |
| Corner Radius | 0.15mm |
| Finish/Coating | Uncoated |
| ISO Cutting Tool Material | Uncoated WC |
| Maximum Depth of Cut | 26mm |
| Product Type | CoroMill Plura End Mill |
| Coating Type | Uncoated |
| Rotational Speed Maximum | 10300 1/min |
| Basic Standard Group | Coromant |
| Weight | 0.61kg |
| Standards Met | COROMANT |
| CoroPak | 12.2 |
| Functional Length | 150mm |
| Unit Measured | Metric |
| Coolant Entry Style | Without Coolant |
| MFR Part No. | 26260016 |
| Usable Length | 100mm |
