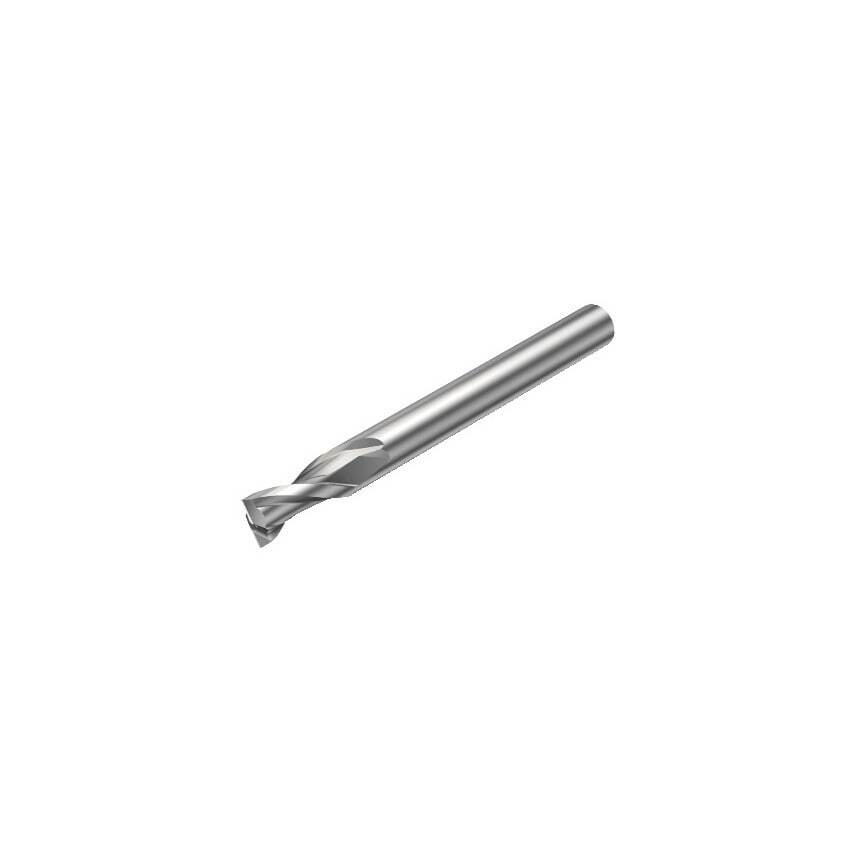

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Grade | H10F |
| Center Cutting Capability | Yes |
| ISO Cutting Tool Material | Uncoated WC |
| Cutting Diameter | 8mm |
| Basic Standard Group | Coromant |
| Material | Carbide |
| Weight | 75.5g |
| Usable Length | 64mm |
| Maximum Depth of Cut | 11mm |
| Standards Met | COROMANT |
| Functional Length | 100mm |
| Unit Measured | Metric |
| CoroPak | 12.2 |
| Coating Process Type | Uncoated |
| Maximum Cutting Depth | 11mm |
| MFR Part No. | 26260022 |
| Coating Type | Uncoated |
| Connection Diameter | 7.8mm |
| Coolant Entry Style | Without Coolant |
| Through Hole Function Property | Yes |
| Rotational Speed Maximum | 78300 1/min |
| Product Type | CoroMill Plura End Mill |
| Finish/Coating | Uncoated |
| Maximum Ramping Angle | 15\u00b0 |
| Corner Radius | 0.15mm |
