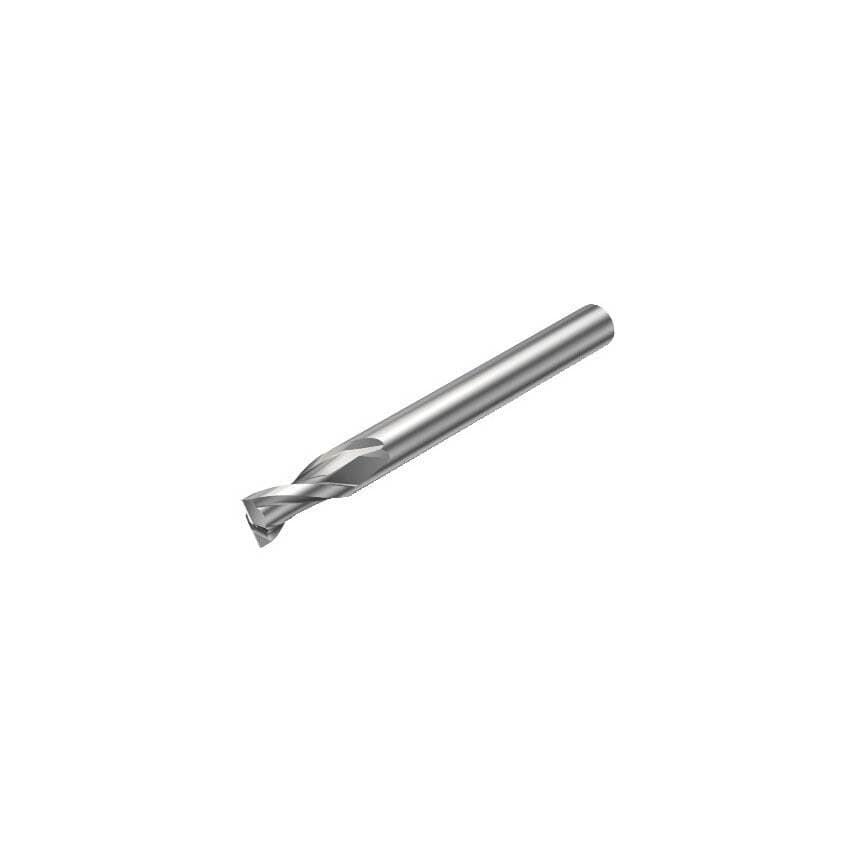

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Maximum Ramping Angle | 15\u00b0 |
| Coating Type | Uncoated |
| Functional Length | 60mm |
| Product Type | CoroMill Plura End Mill |
| Connection Diameter | 2.9mm |
| Grade | H10F |
| Center Cutting Capability | Yes |
| Coating Process Type | Uncoated |
| ISO Cutting Tool Material | Uncoated WC |
| Finish/Coating | Uncoated |
| CoroPak | 12.2 |
| Corner Radius | 0.15mm |
| Through Hole Function Property | Yes |
| Material | Solid Carbide |
| Usable Length | 32mm |
| MFR Part No. | 26260018 |
| Basic Standard Group | Coromant |
| Rotational Speed Maximum | 80000 1/min |
| Maximum Depth of Cut | 4mm |
| Coolant Entry Style | Without Coolant |
| Cutting Diameter | 3mm |
| Maximum Cutting Depth | 4mm |
| Unit Measured | Metric |
| Standards Met | COROMANT |
