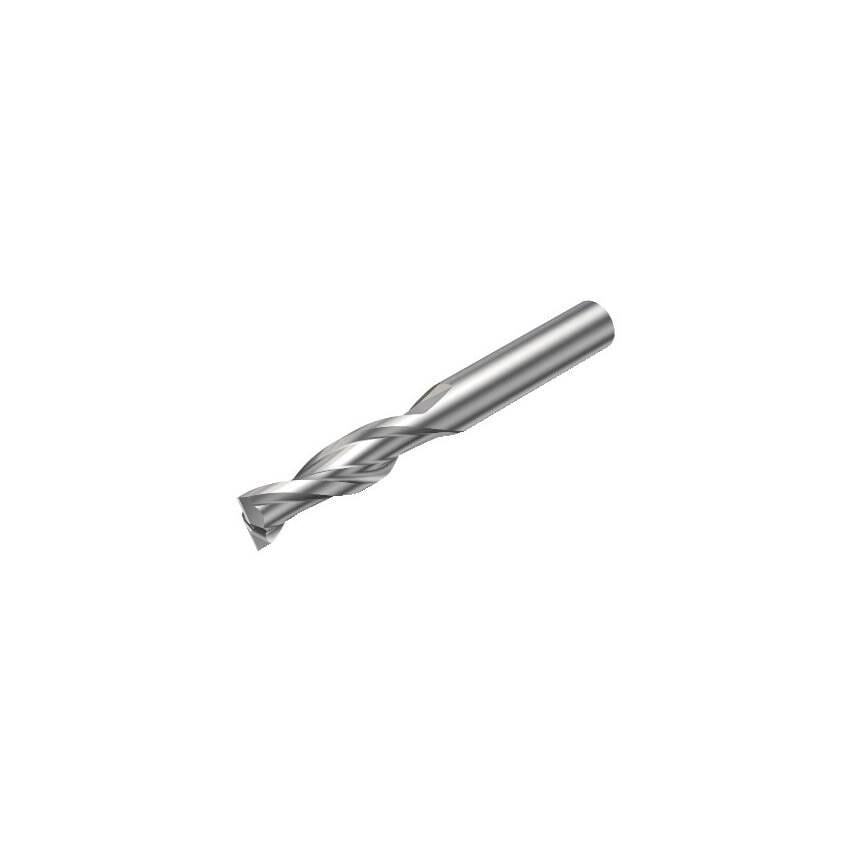

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| MFR Part No. | 26260024 |
| Coolant Entry Style | Without Coolant |
| Product Type | CoroMill Plura End Mill |
| Center Cutting Capability | Yes |
| Maximum Cutting Depth | 38mm |
| Coating Process Type | Uncoated |
| Grade | H10F |
| Maximum Depth of Cut | 38mm |
| Functional Length | 100mm |
| Through Hole Function Property | Yes |
| Maximum Ramping Angle | 15\u00b0 |
| ISO Cutting Tool Material | Uncoated WC |
| Material | Carbide |
| Rotational Speed Maximum | 80000 1/min |
| CoroPak | 12.2 |
| Usable Length | 38mm |
| Unit Measured | Metric |
| Coating Type | Uncoated |
| Basic Standard Group | Coromant |
| Connection Diameter | 32mm |
| Finish/Coating | Uncoated |
| Standards Met | COROMANT |
| Weight | 0.14kg |
| Cutting Diameter | 12mm |
