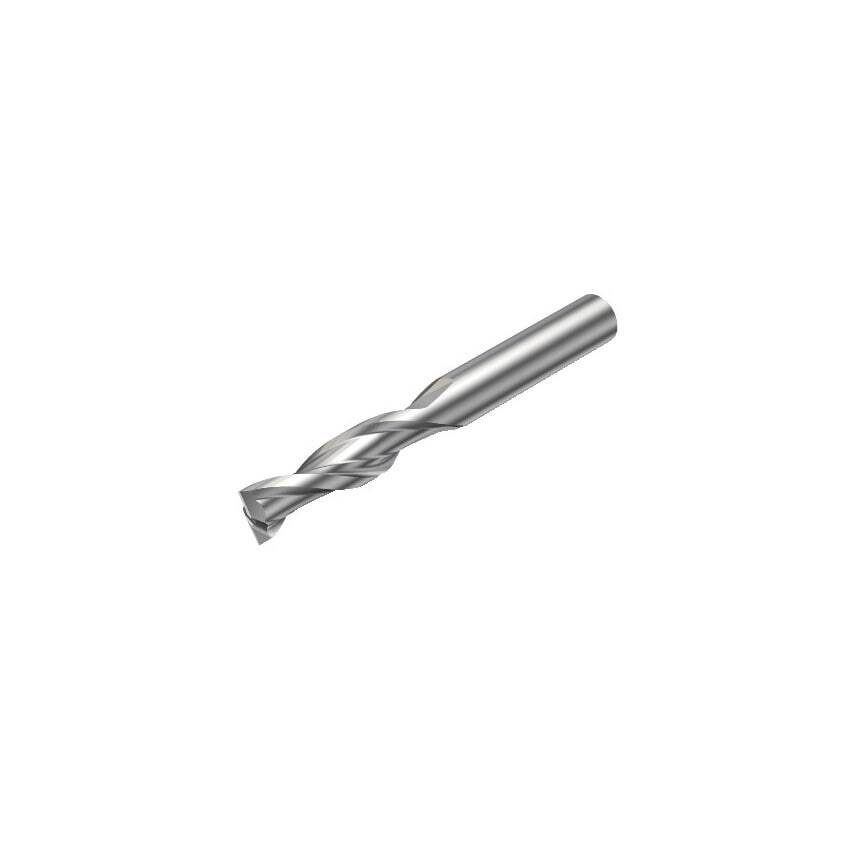

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Corner Radius | 0.15mm |
| Maximum Cutting Depth | 16mm |
| Center Cutting Capability | Yes |
| Coolant Entry Style | Without Coolant |
| Standards Met | COROMANT |
| MFR Part No. | 26260039 |
| Functional Length | 60mm |
| Cutting Diameter | 4mm |
| Rotational Speed Maximum | 80000 1/min |
| Product Type | CoroMill Plura End Mill |
| Through Hole Function Property | Yes |
| Maximum Depth of Cut | 16mm |
| Finish/Coating | Uncoated |
| Grade | H10F |
| Material | Solid Carbide |
| Connection Diameter | 0.5mm |
| Usable Length | 16mm |
| Unit Measured | Metric |
| CoroPak | 12.2 |
| ISO Cutting Tool Material | Uncoated WC |
| Maximum Ramping Angle | 15\u00b0 |
| Coating Type | Uncoated |
| Basic Standard Group | Coromant |
| Coating Process Type | Uncoated |
