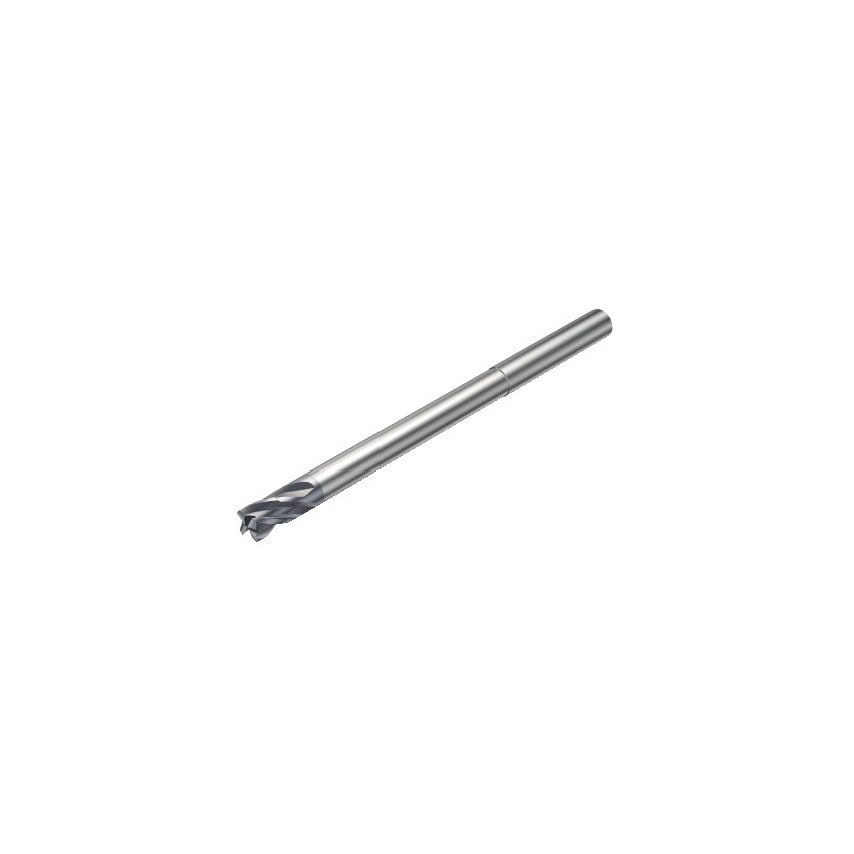

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Center Cutting Capability | Yes |
| CoroPak | 12.2 |
| Product Type | CoroMill Plura End Mill |
| Corner Radius | 0mm |
| Standards Met | COROMANT |
| Maximum Depth of Cut | 3mm |
| Maximum Ramping Angle | 10\u00b0 |
| Coating Process Type | CVD |
| Rotational Speed Maximum | 80000 1/min |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Maximum Cutting Depth | 3mm |
| Coating Type | Sp3 |
| Unit Measured | Metric |
| Cutting Diameter | 3mm |
| Functional Length | 80mm |
| Basic Standard Group | Coromant |
| MFR Part No. | 26260051 |
| Coolant Entry Style | Without Coolant |
| Usable Length | 3mm |
| Connection Diameter | 9.53mm |
| Grade | N20C |
| Through Hole Function Property | Yes |
| Material | Solid Carbide |
