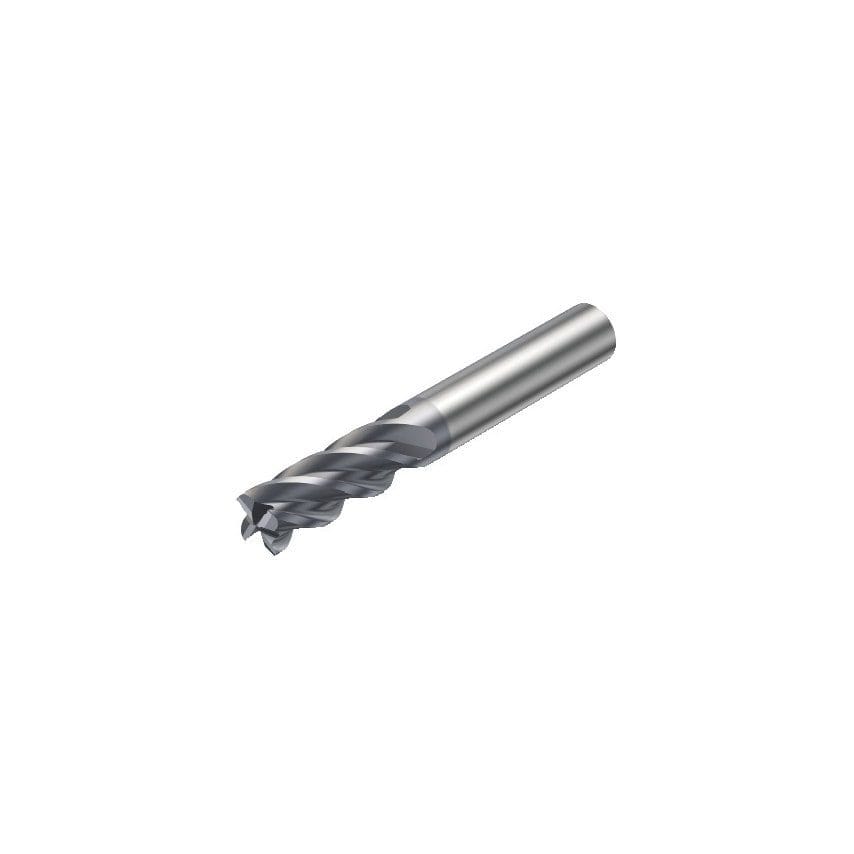

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Standards Met | DIN 6527 L |
| Cutting Diameter | 9mm |
| Coolant Entry Style | Without Coolant |
| CoroPak | 12.2 |
| Unit Measured | Metric |
| Connection Diameter | 10mm |
| Grade | 1630 |
| Functional Length | 72mm |
| Material | Solid Carbide |
| Coating Type | AlCrN |
| Weight | 81.2g |
| Finish/Coating | AlCrN |
| Shank Type | Cylindrical |
| Maximum Cutting Depth | 19mm |
| Usable Length | 19mm |
| Maximum Ramping Angle | 5\u00b0 |
| Basic Standard Group | DIN 6527 L |
| Center Cutting Capability | Yes |
| Through Hole Function Property | Yes |
| Maximum Depth of Cut | 19mm |
| Body Half Taper Angle | 30\u00b0 |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Coating Process Type | PVD |
| MFR Part No. | 26260107 |
| Rotational Speed Maximum | 72600 1/min |
| Product Type | Solid Carbide Endmill |
