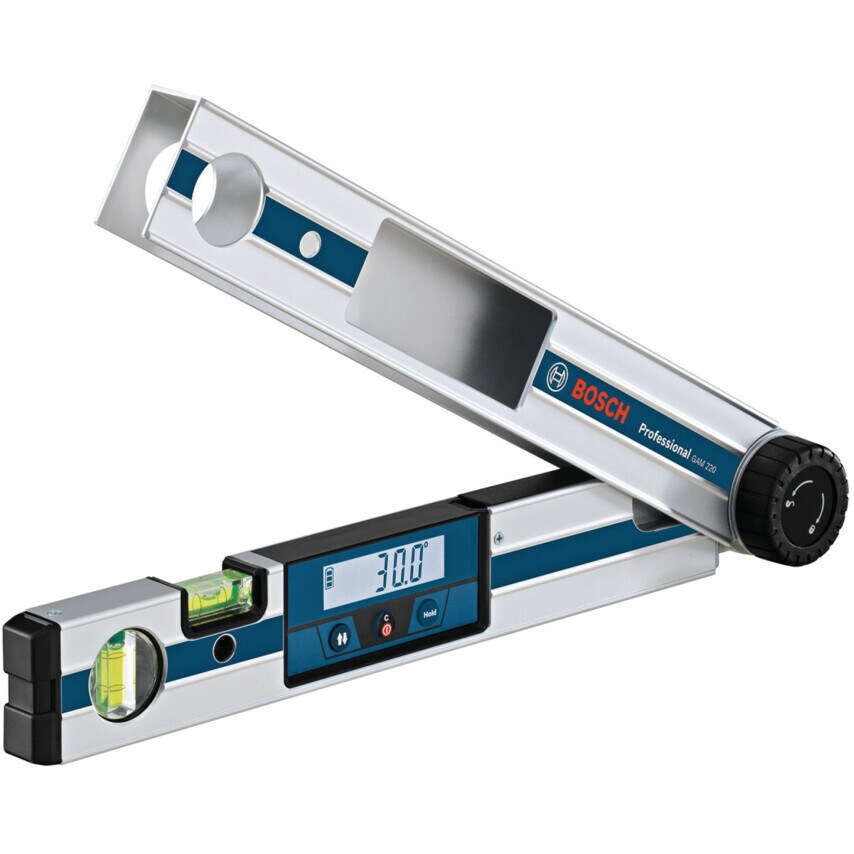

GAM 220 Professional Digital Angle Measure - 0 601 076 500

Five tools in one: digital angle measure, inclinometer, mitre calculator, protractor and level. Optimum readability due to rotating, illuminated display. Hold function for holding and transferring the measuring result at the press of a button. Stores angle and inclinometer measurements in memory for repeated use. Precise angle transfer due to mechanical locking screw. Robust and compact design with IP54 protection. No calibration required. Digital angle measure and inclinometer in one. Digital angle measure delivers accurate angle targets. Calculates mitre angles without the need for accessories. Inclinometer with laser up to a range of 30 m Specification: Measurement Range: 0 - 270. Simple Mitre Cut Input Angle Range: 0 - 220. Compound Cut Input Angle Range: 0 - 180. Measurement Accuracy, Angles: 0.1. Leveling Accuracy (Vial): +/- 0.05. Power Supply: 4x 1.5V (AA). Battery Power, Approx.: 50hr Automatic Deactivation Facility, Approx.: 30 mins Arm Length: 600mm Leg Extension Length: 40mm Leg Extension Range: 0 - 170mm Material: Aluminum Length: 684mm Width: 52mm Height: 60mm Weight: 1.7 kg

Resolution	0.1\u00b0
MFR Part No.	0 601 076 500
Product Type	Digital Angle Level
Accuracy	\u00b1 0.1\u00b0
Overall Length	446mm
Number of Vials	2
