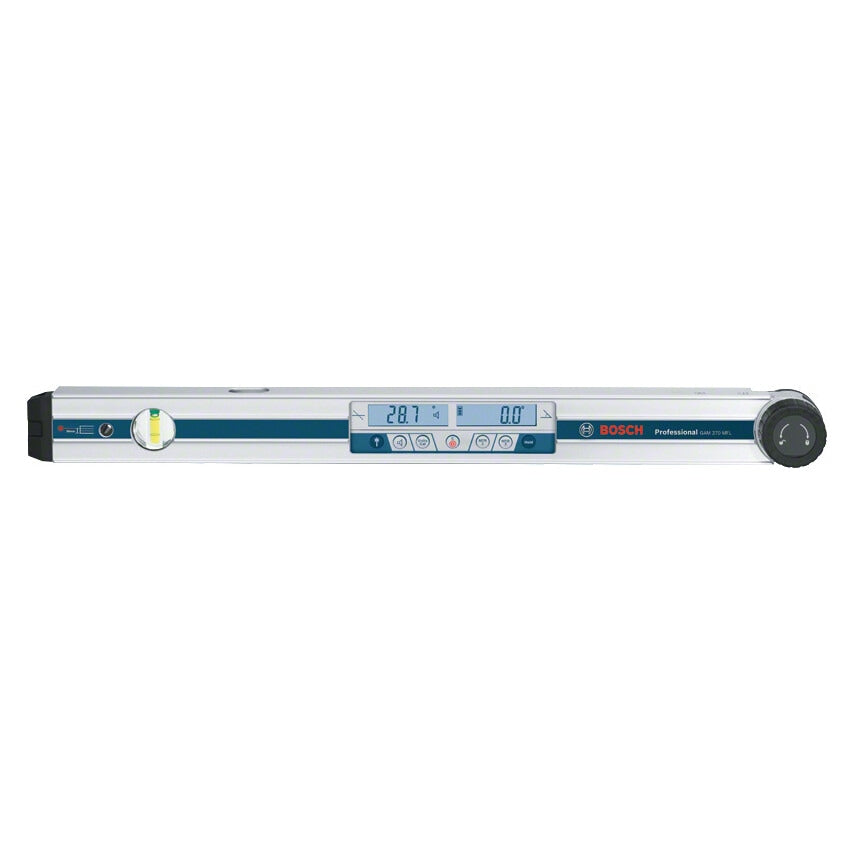

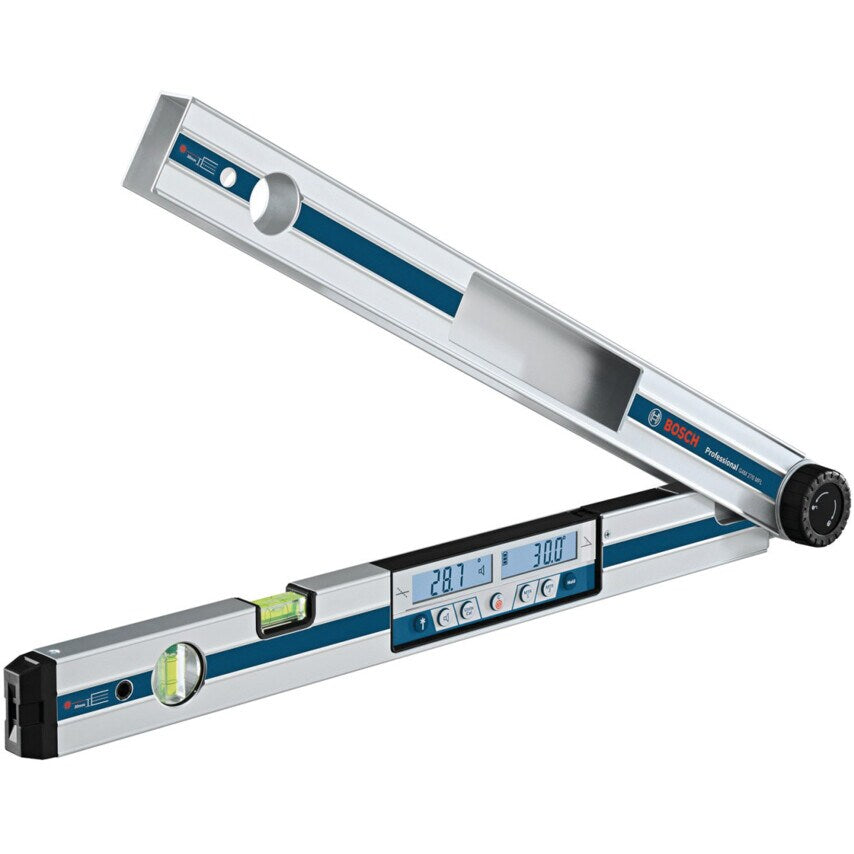

Five tools in one: digital angle measure, inclinometer, mitre calculator, protractor and level.
Optimum readability due to rotating, illuminated display.
Hold function for holding and transferring the measuring result at the press of a button.
Stores angle and inclinometer measurements in memory for repeated use.
Precise angle transfer due to mechanical locking screw.
Robust and compact design with IP54 protection.
No calibration required.
Digital angle measure and inclinometer in one.
Digital angle measure delivers accurate angle targets.
Calculates mitre angles without the need for accessories.
Inclinometer with laser up to a range of 30 m
Specification:
Measurement Range: 0 - 270.
Simple Mitre Cut Input Angle Range: 0 - 220.
Compound Cut Input Angle Range: 0 - 180.
Measurement Accuracy, Angles: 0.1.
Leveling Accuracy (Vial): +/- 0.05.
Power Supply: 4x 1.5V (AA).
Battery Power, Approx.: 50hr
Automatic Deactivation Facility, Approx.: 30 mins
Arm Length: 600mm
Leg Extension Length: 40mm
Leg Extension Range: 0 - 170mm
Material: Aluminum
Length: 684mm
Width: 52mm
Height: 60mm
Weight: 1.7 kg
| MFR Part No. | 601076400 |
| Resolution | 0.1\u00b0 |
| Number of Vials | 2 |
| Accuracy | Measurement Accuracy (Angles) \u00b1 0.1\u00b0 |
| Overall Length | 684mm |
| Product Type | Digital Angle Level |
