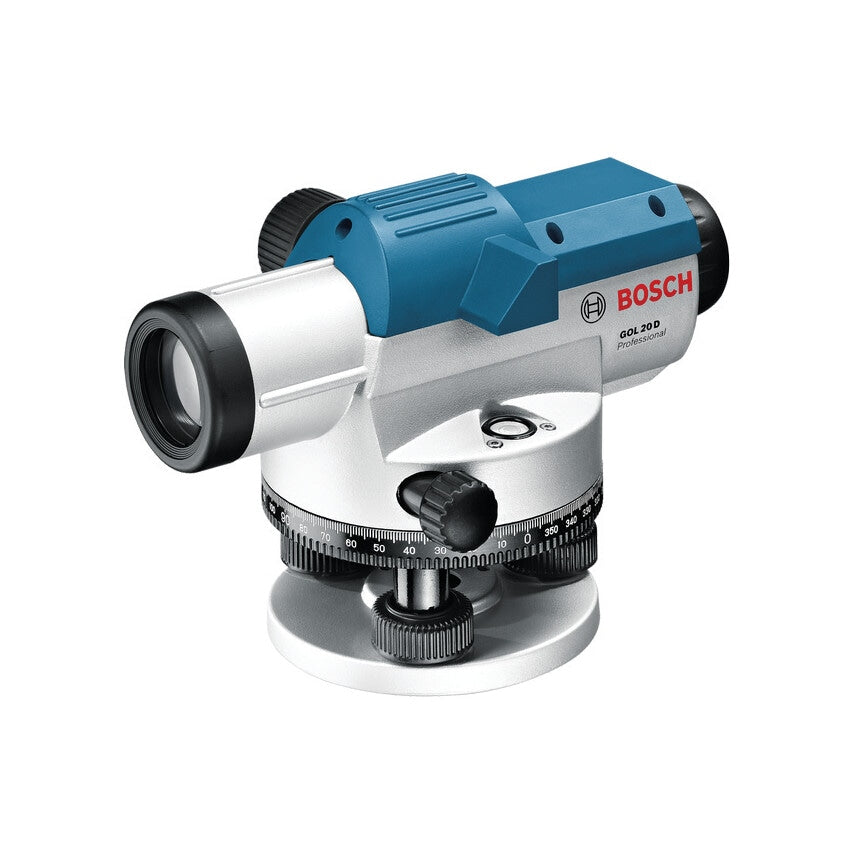

Professional optical level robust, reliable and ideal for outdoor use. Fast aperture for excellent staff reading and a target collimator for rough alignment. The compensator lock makes for safe transport and the Penta prism makes it incredibly easy for the user to read the red circular vial. It boasts erect image and a large focusing knob for easy alignment as well as friction-braked rotation.All products are supplied with an adjusting pin, hex key, lens cover, plumb bob and carry case. Models 0 615 994 04R and 0 615 994 0AX also come with a Measuring Rod and Tripod.FEATURESTarget collimator for rough alignmentPenta prism makes it easy to read the circular vialErect imageLarge focusing knob for easy alignmentFast aperture for a sharp image of the target (measuring rod)Endless degree/angle setting using knobs with friction-braked rotationIdeal for outdoor use due to a robust housing with dust and splash protection Fast aperture for excellent staff readingCompensator lock for safe transport
| Measuring Range | 0.3 - 60m |
| Length | 215mm |
| Includes | Adjusting Pin | Plumb Bob | Hex Keys | Carrying Cases | Lens Cover |
| Magnification | 20x |
| Storage Temperature Range | -20 - 70\u00b0C |
| Weight | 1.5kg |
| Ingress Protection Rating | IP54 |
| Horizontal Circle Gradations in Degrees | 1 |
| Operating Temperature Range | -10 - 50\u00b0C |
| MFR Part No. | GOL 20 D |
| Units of Measurement | 360\u00b0 |
| Height | 145mm |
| Accuracy | 3.0mm/30m |
