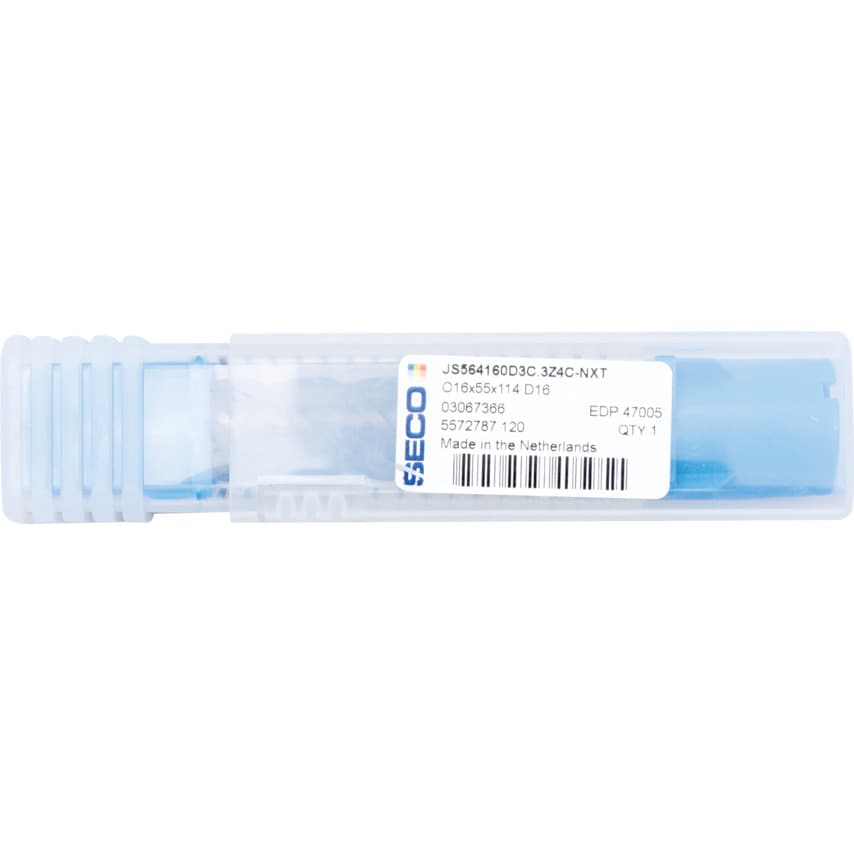

NXT Weldon Shank 4 Flute Mills from Seco provide reliable and high performance cutting power. With an NXT coating they are perfectly suited to cutting applications that include structural and ferrous steels, whilst maintaining high speeds and temperature resistance.
Features and Benefits
Designed for cutting structural and ferrous steels
NXT coated for durability and prolonged tool life
Designed for high performance milling applications
Weldon shank helps prevent tool rotation during use
Specifications
Flute helix angle: 48.0 degrees
Cutting edges: 4
Corner camfer angle: 45.0 degrees
Shank type: Weldon
Typical Applications
Milling
Steel
Ferrous metals
Side milling
| Milling Cutter Type | End Mills |
| Number of Flutes | 4 |
| MFR Part No. | 3067366 |
| ISO Category | S |
| Coolant Delivery | External |
| Material | Carbide |
| Helix Angle | 44\u00b0 |
| Shank Diameter | 16mm |
| Cutter Style | Square End |
| System of Measurement | Metric |
| Flute Type | Helical |
| Length Type | Regular |
| Overall Length | 114mm |
| Shank Type | Weldon |
| Product Type | Milling Cutters |
| Shank Diameter Tolerance | h5 |
| Cutter Diameter | 16mm |
| Flute Length | 55mm |
