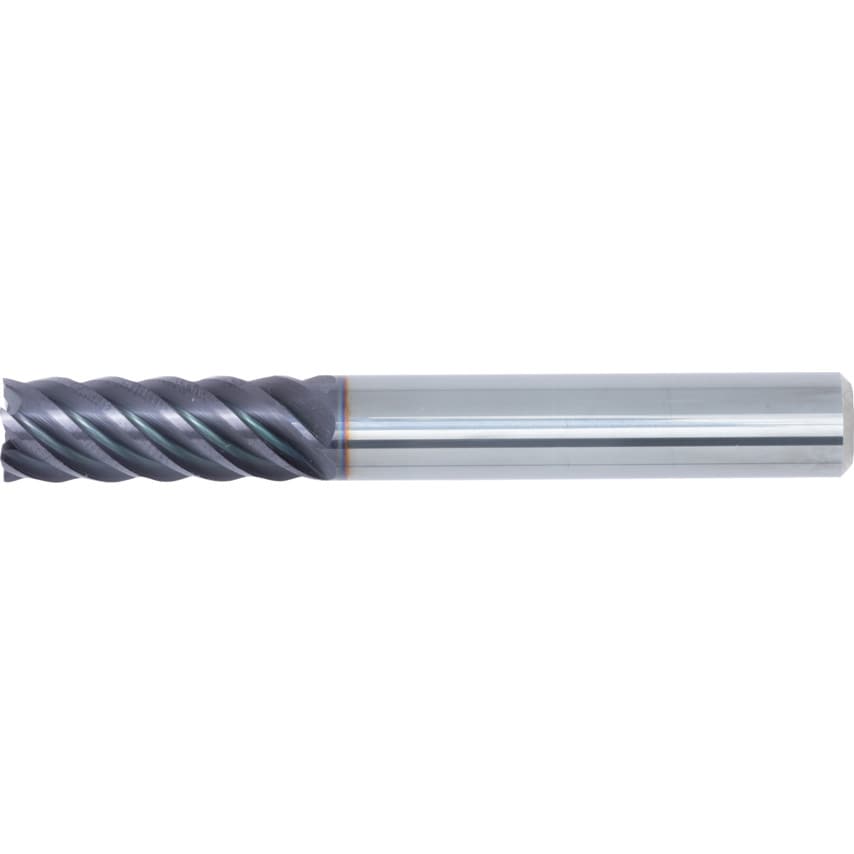

3MM RF100Diver Carbide End Mills feature a hardened carbide construction for increased rigidity and a nano-Si coating for improved performance and durability. The weldon shank design helps hold the tool in place and prevents rotation within the machine.
Features and Benefits
Hard carbide construction for increased rigidity
Nano-Si coating for increased wear and heat resistance
4 Flute for optimal cutting performance
Weldon shank for increased stability when machining
Specifications
Series number: 6804
Coating: Nano-Si
Cutting Edge: Corner chamfer
Helix Angle: 36/37/38
Material: Carbide
Shank: HB weldon flat
Typical Applications
Milling
Steel
Stainless steel
Cast iron
| Length Type | Regular |
| Material | Carbide |
| Cutter Diameter | 12.0mm |
| Cutter Style | Square End |
| Coolant Delivery | External |
| Standards Met | DIN 62527K |
| Milling Cutter Type | End Mills |
| Overall Length | 73.0mm |
| Shank Diameter | 12.0mm |
| ISO Category | S |
| Product Type | Carbide Milling Cutter |
| Finish/Coating | Nano-Si |
| Flute Length | 16.0mm |
| Cutting Direction | Right Hand |
| Flute Type | Spiral |
| Plunge Type | Centre Cutting |
| Helix Angle | 36/37/38\u00b0 |
| Number of Flutes | 4 |
| Series | 6804 |
| MFR Part No. | 06804 012.000 |
| System of Measurement | Metric |
| Shank Type | HB Weldon Flat |
| End Mill Type | End Mill |
