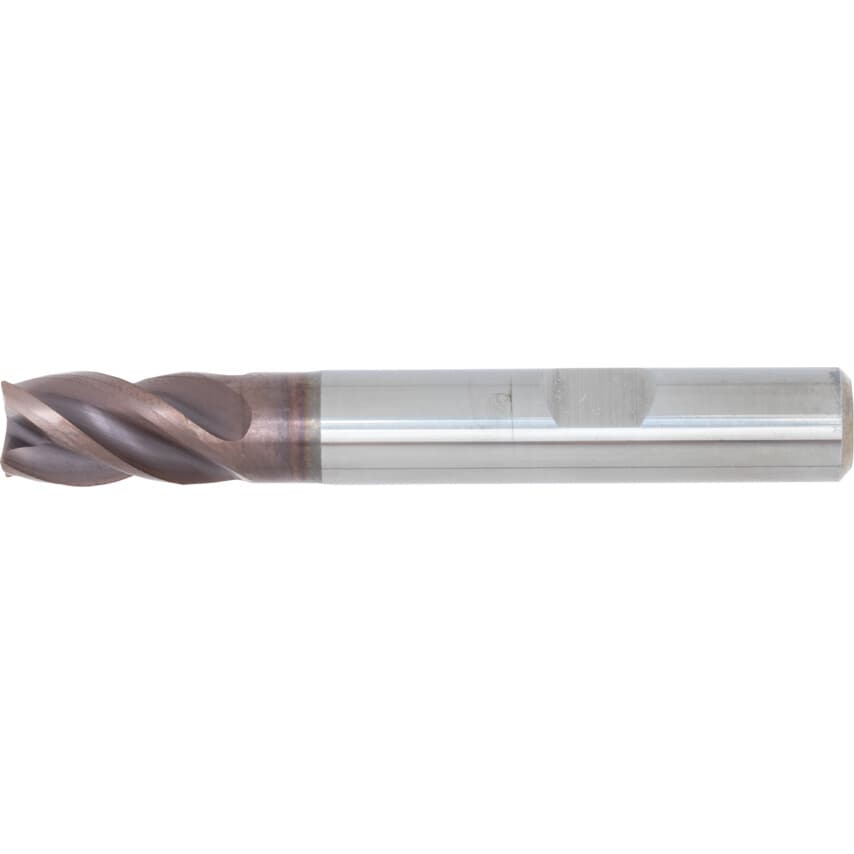

3MM RF100Diver Carbide End Mills feature a hardened carbide construction for increased rigidity and a nano-Si coating for improved performance and durability. The weldon shank design helps hold the tool in place and prevents rotation within the machine.
Features and Benefits
Hard carbide construction for increased rigidity
Nano-Si coating for increased wear and heat resistance
4 Flute for optimal cutting performance
Weldon shank for increased stability when machining
Specifications
Series number: 6804
Coating: Nano-Si
Cutting Edge: Corner chamfer
Helix Angle: 36/37/38
Material: Carbide
Shank: HB weldon flat
Typical Applications
Milling
Steel
Stainless steel
Cast iron
| Material | Carbide |
| Series | 6804 |
| Standards Met | 6527K |
| Shank Diameter | 8mm |
| Cutter Diameter | 8mm |
| Coolant Delivery | External |
| Product Type | Milling Cutters |
| Number of Flutes | 4 |
| Flute Length | 12mm |
| Length Type | Regular |
| End Mill Type | End Mill |
| Flute Type | Helical |
| Milling Cutter Type | End Mills |
| ISO Category | S |
| Shank Type | HB Weldon Flat |
| MFR Part No. | 06804 008.000 |
| Finish/Coating | Nano-Si |
| System of Measurement | Metric |
| Plunge Type | Centre Cutting |
| Helix Angle | 36/38/37\u00b0 |
| Overall Length | 58mm |
| Cutter Style | Square End |
