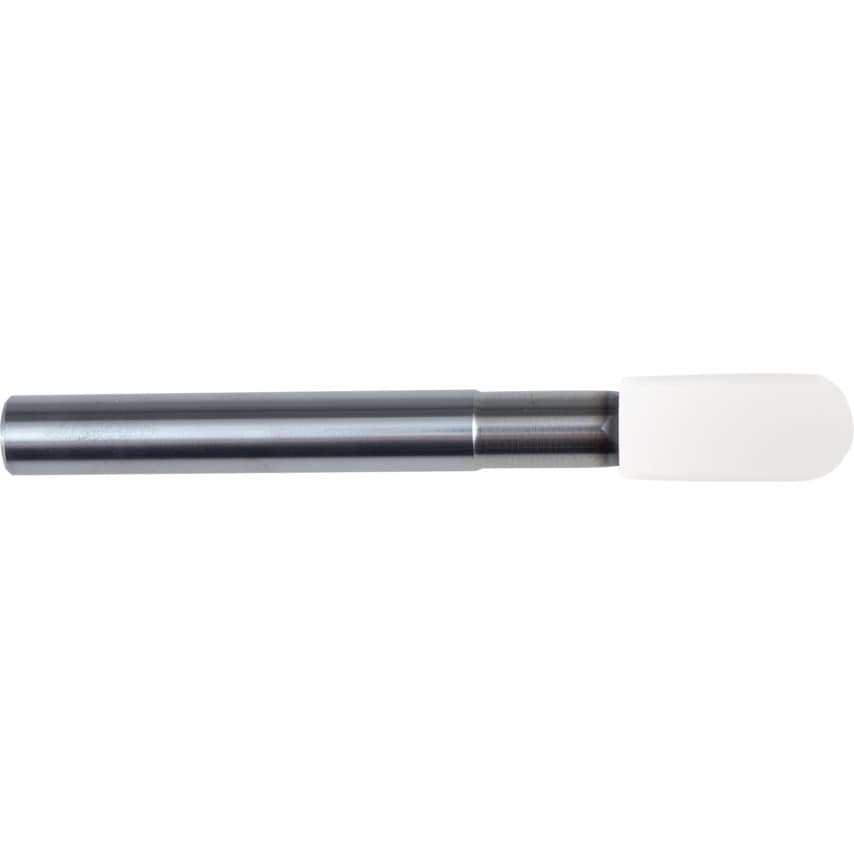

With a solid carbide construction, a PVD TIALN coating and 4 effective cutting surfaces the range of R216.24 CoroMill plura solid carbide end mills offers durbable and reliable cutting power.
Features and Benefits
Solid carbide constriction for increased rigidity
PVD TIALN coating for optimum durability
4 flute cutting surface for good chip clearance
Specifications
Cutting diameter: 4mm (face) 10mm (overall)
Cut depth max: 22mm
Diameter tolerance: h6
Connection diameter: 10mm
Cylindrical shank
Flute helix angle: 50 degrees
Corner radius: 3mm
Grade: 1620
Rotational speed max: 80,000 1/min
Typical Applications
Steel
Stainless steel
Milling
| Shank Type | Cylindrical |
| Product Type | End Mills |
| Number of Flutes | 4 |
| Corner Radius | 3mm |
| Grade | 1620 |
| Material | Solid Carbide |
