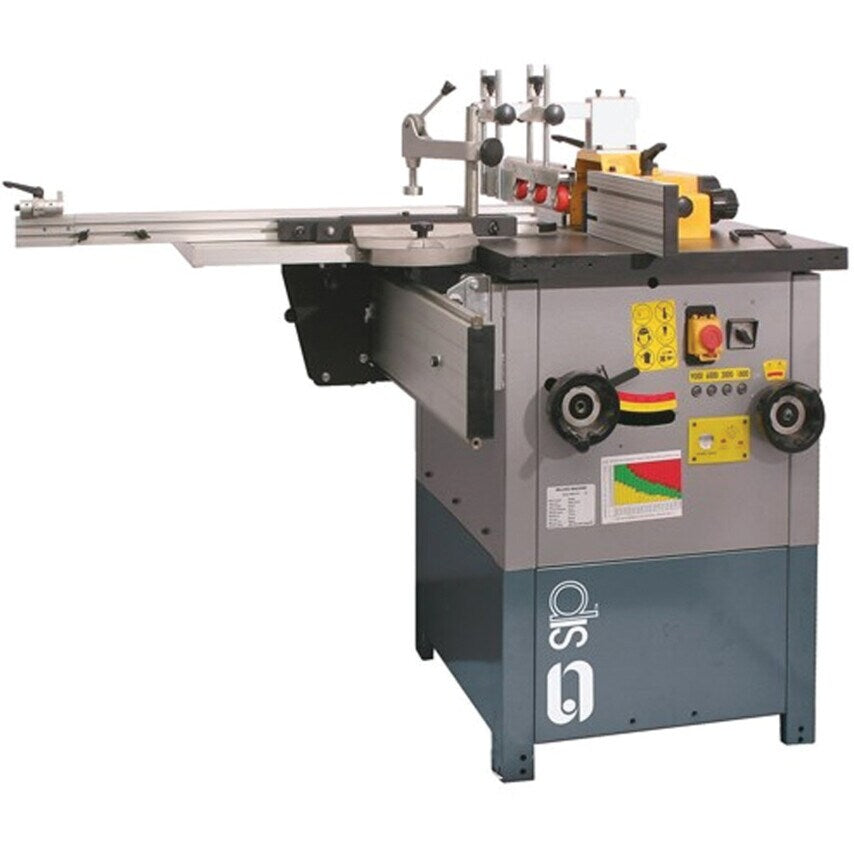

01456 Professional Spindle Moulder

This machine is designed to cope with a wide range of woodworking tasks - especially end moulding, profiling and tenoning. It features a large cast-iron table with a tilting spindle for greater flexibility. 4 spindle speeds and a heavy-duty fence and clamping system. This is therefore ideal for intricate work pieces and resulting in safer operation. The solid build (weighs over 170kg) and advanced design mean this machine is perfect for woodworking professionals as well as serious amateurs. Features and Benefits 230v (16amp) input supply 2.8kW (3.75hp) induction motor -10 to +30 spindle tilting angle 200mm set table opening aperture 710 x 640mm overall table dimensions 900mm Table Height Speed Indication Light Display Low speed for use with sanding bobbin Pre-drilled table to accept a power unit 4 speeds, 1800/3000/6000/9000rpm Table pre-drilled to accept power feed unit Solid and durable construction Integrated NVR switch Need support to find the right solution [contact our Technical Product Support Team](https://www.cromwell.co.uk/info/technical)

Motor Rating	2
Supply Voltage	230V
Spindle Travel	100mm
Standards Met	CE Approved
Shank Diameter	30mm
Table Dimensions	710 x 640
Horsepower	3.75HP
Tilting Range	-10 to 30\u00b0
Spindle Speed Range	1800 / 3000 / 6000 / 9000
Motor Power	2.8kW (3.75hp)
Weight	170kg
Number of Spindle Speeds	4
MFR Part No.	01456
