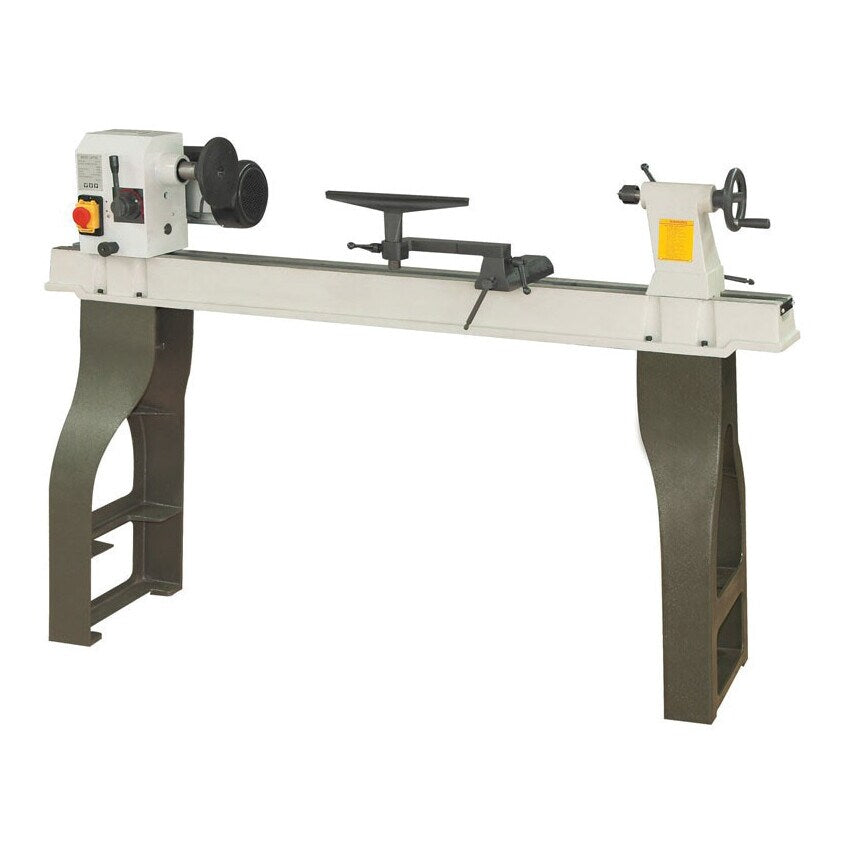

The powerful 1.05Hp induction moter in this compact lathe ensures long lasting, smooth performance. The lathe comprises of a robust heavy duty cast iron bed, headstock and tailstock.
Features and Benefits
10-speed lathe for maximum flexibility
Fitted with hollow tailstock suitable for long hole boring
350mm maximum turning diameter
1,100mm max. turning between centres
Rotating headstock for larger bowls
Headstock will move along the bed to centralise heavy bowl turning
Digital read-out for higher accuracy
Heavy-duty cast iron construction
Integrated NVR switch
Typical Application
Ideal for heavy-duty wood turning
Note:
Always return the speed control lever to the lowest speed position before turning the lathe off. Not complying may prevent the motor from starting and / or cause damage to the lathe.
Need support to find the right solution [contact our Technical Product Support Team](https://www.cromwell.co.uk/info/technical)
| Power Supply | 230v/1ph/50Hz |
| Headstock Taper | MT1 |
| Voltage | 230V |
| Spindle Thread | 3/4\ x 16 TPI |
| Includes | 2x Tool Rests & Bowl Turning Rest Holder | Cast Iron Leg Stand for a Solid Robust Base | Drive and Live Tailstock Centres | Face Plates |
| Distance Between Centres | 1 |
| Tailstock Taper | MT2 |
| Phase | Single Phase |
| Motor | 1.0HP/750W |
| Weight | 130kg |
| Speed | 500 - 2 |
| Hertz | 50Hz |
| Standards Met | CE Approved |
| Turning Capacity Diameter | 350mm |
| MFR Part No. | 01940 |
| Overall Length | 1 |
