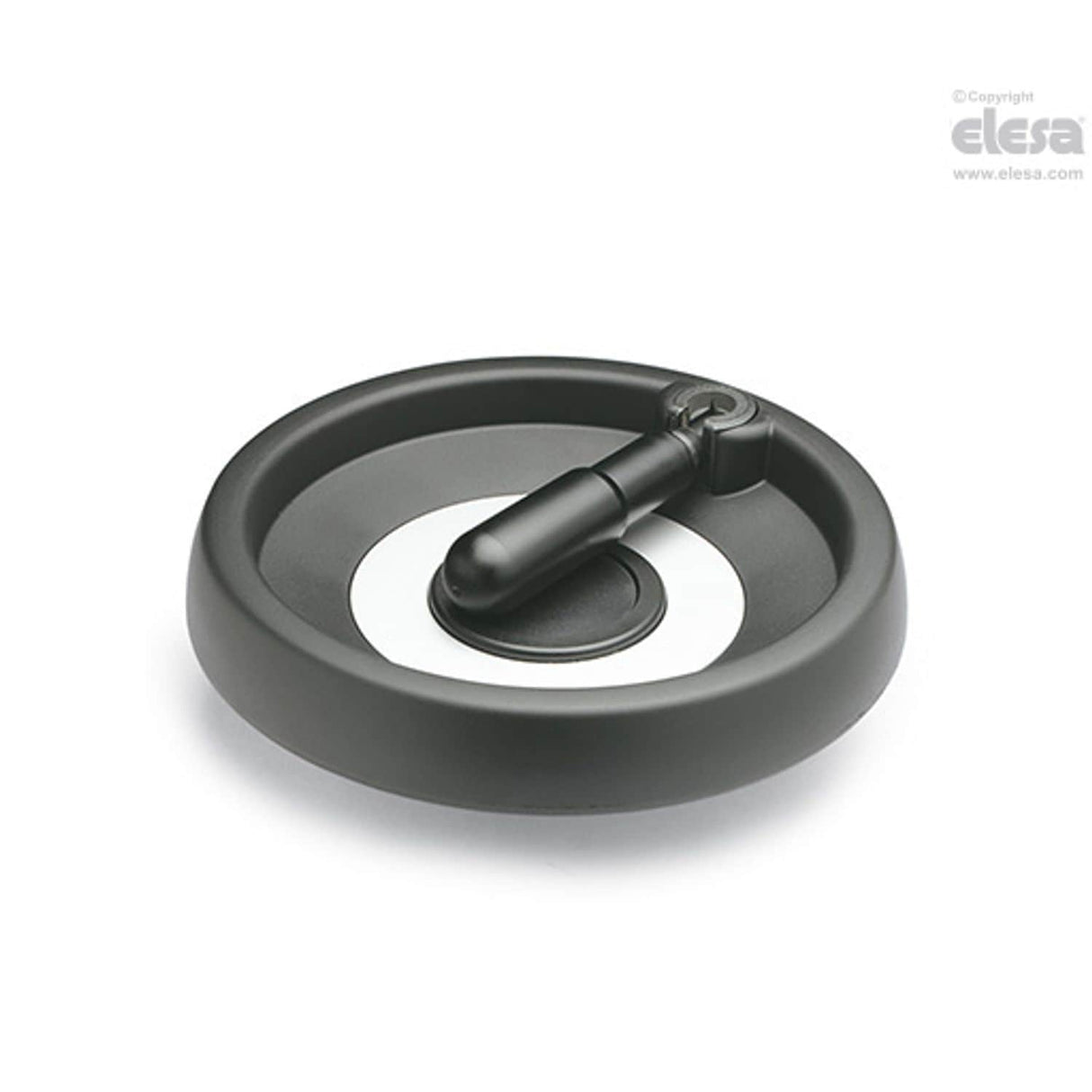

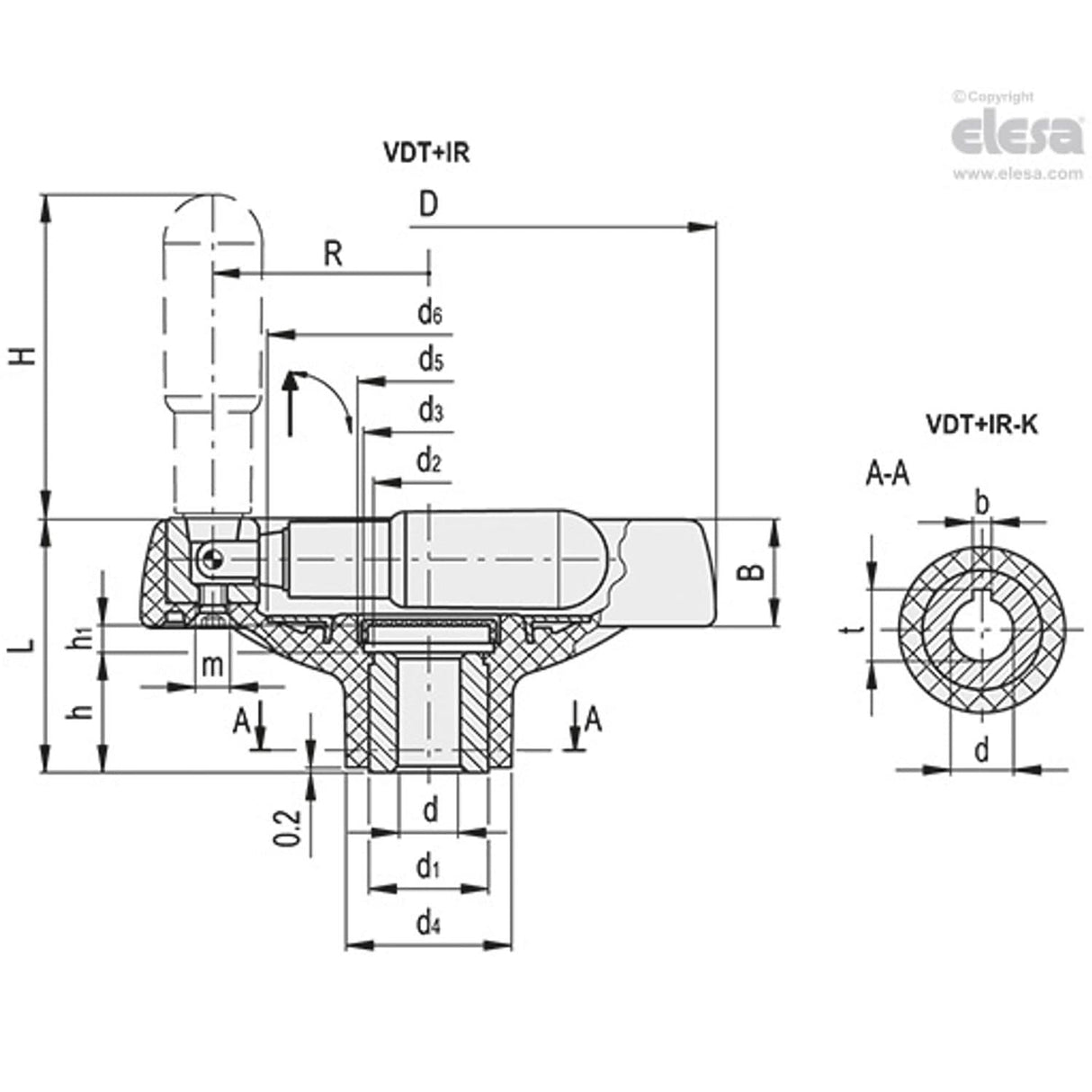

VDT. Solid handwheels, Technopolymer, Fold-away handle For product drawing and dimensions refer to pdf Item data sheet.
| d1 | 26 |
| Weight | 375g |
| H | 65 |
| d3 | 28 |
| d(H7) | 12 |
| D | 125 |
| d5 | 31 |
| h | 27 |
| MFR Part No. | VDT.125+IR A-12 |
| R | 47 |
| B | 24 |
| Diameter | 125mm |
| d6 | 70 |
| L | 57 |
| d4 | 36 |
| C# | 200Nm |
| L# | 23J |
| h1 | 7 |
| d2 | 24 |
