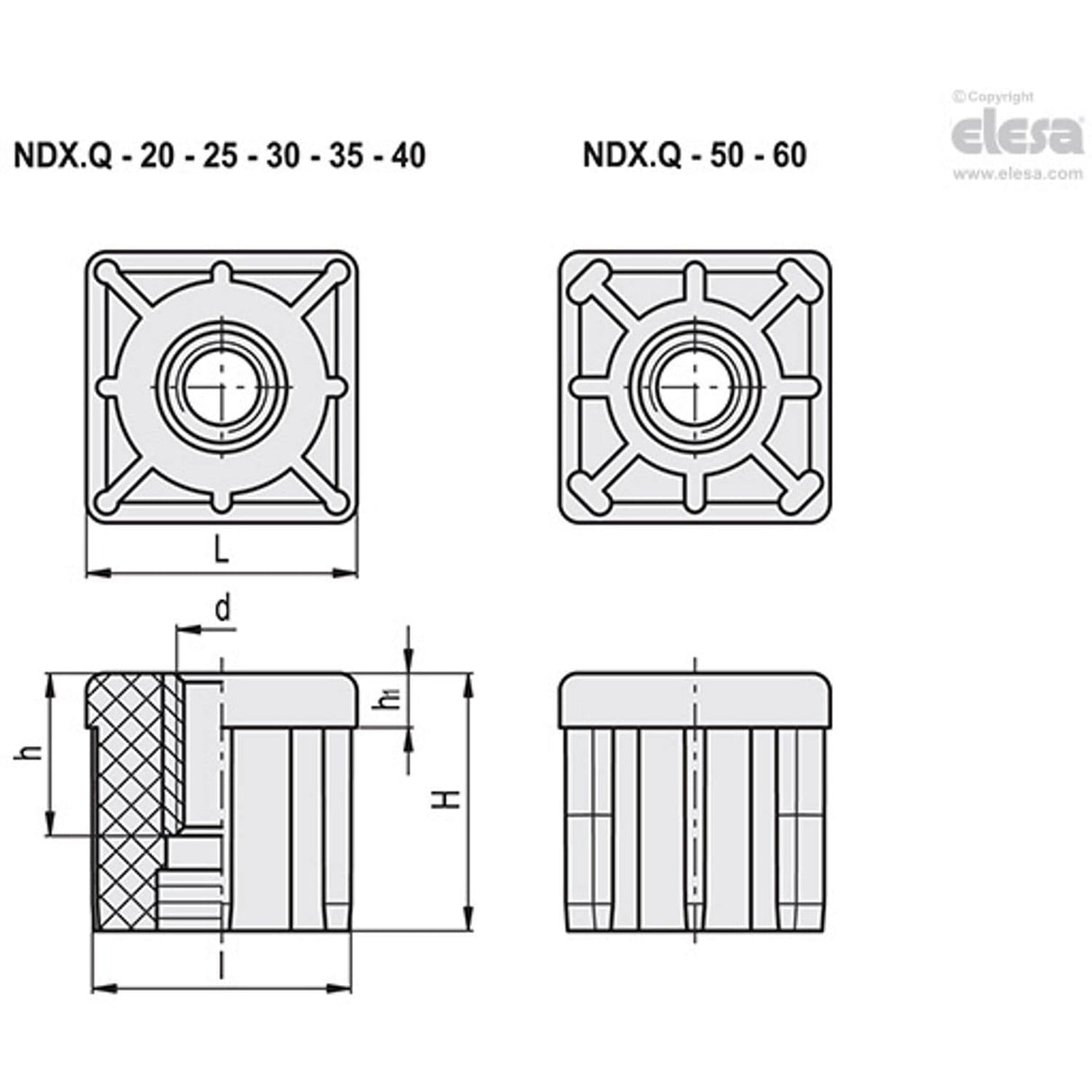

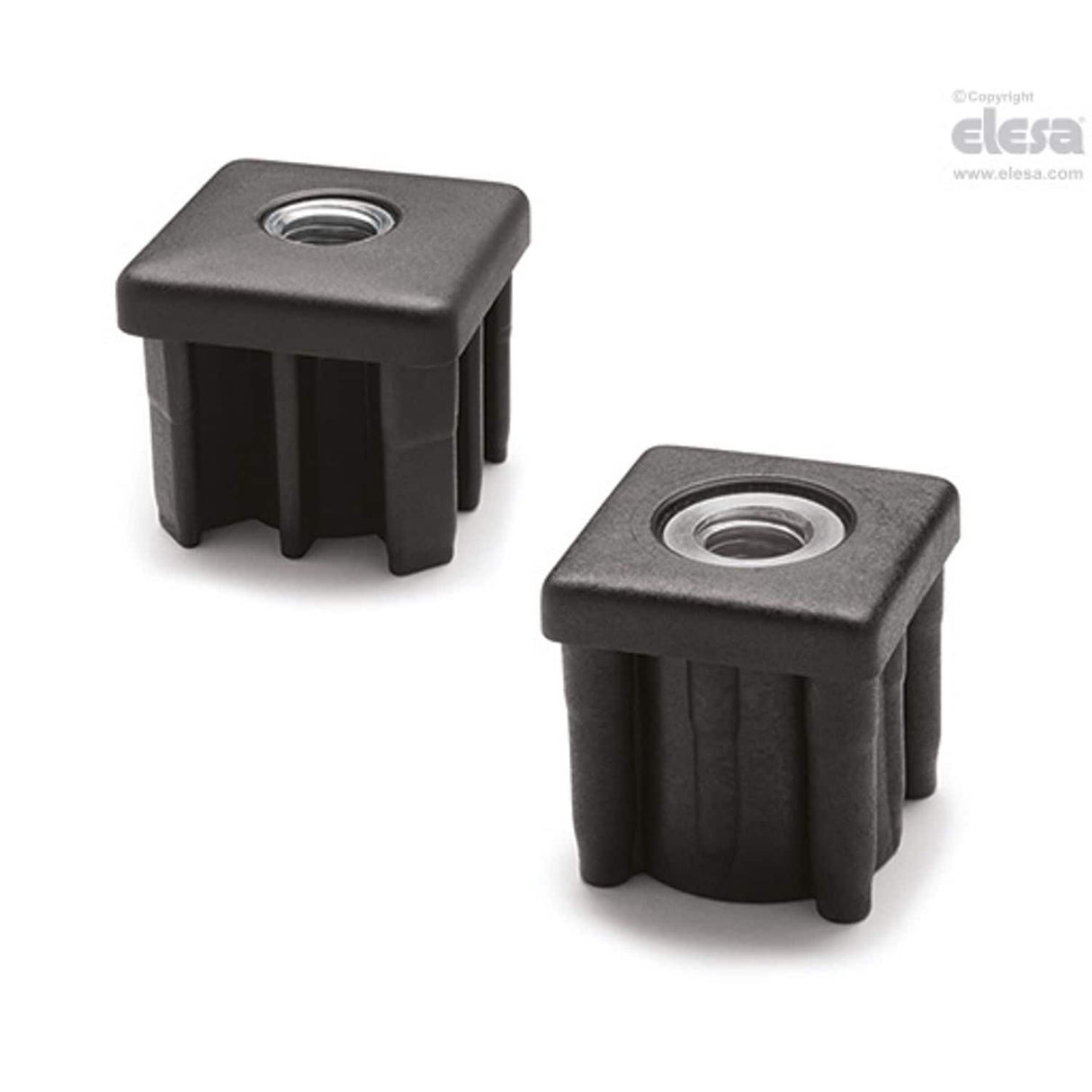

NDX.Q Square end-caps for tubes, For product drawing and dimensions refer to pdf Item data sheet.
| Max. Static Load | 8500N |
| Inner Diameter | 45 |
| External Diameter | 50 |
| h | 20 |
| d | M20 |
| H | 45 |
| h1 | 10 |
| Tube Thickness | 2.5 |
| l | 45 |
| L | 50 |
| MFR Part No. | NDX.Q-50x2.5-M20 |
| Weight | 90g |
