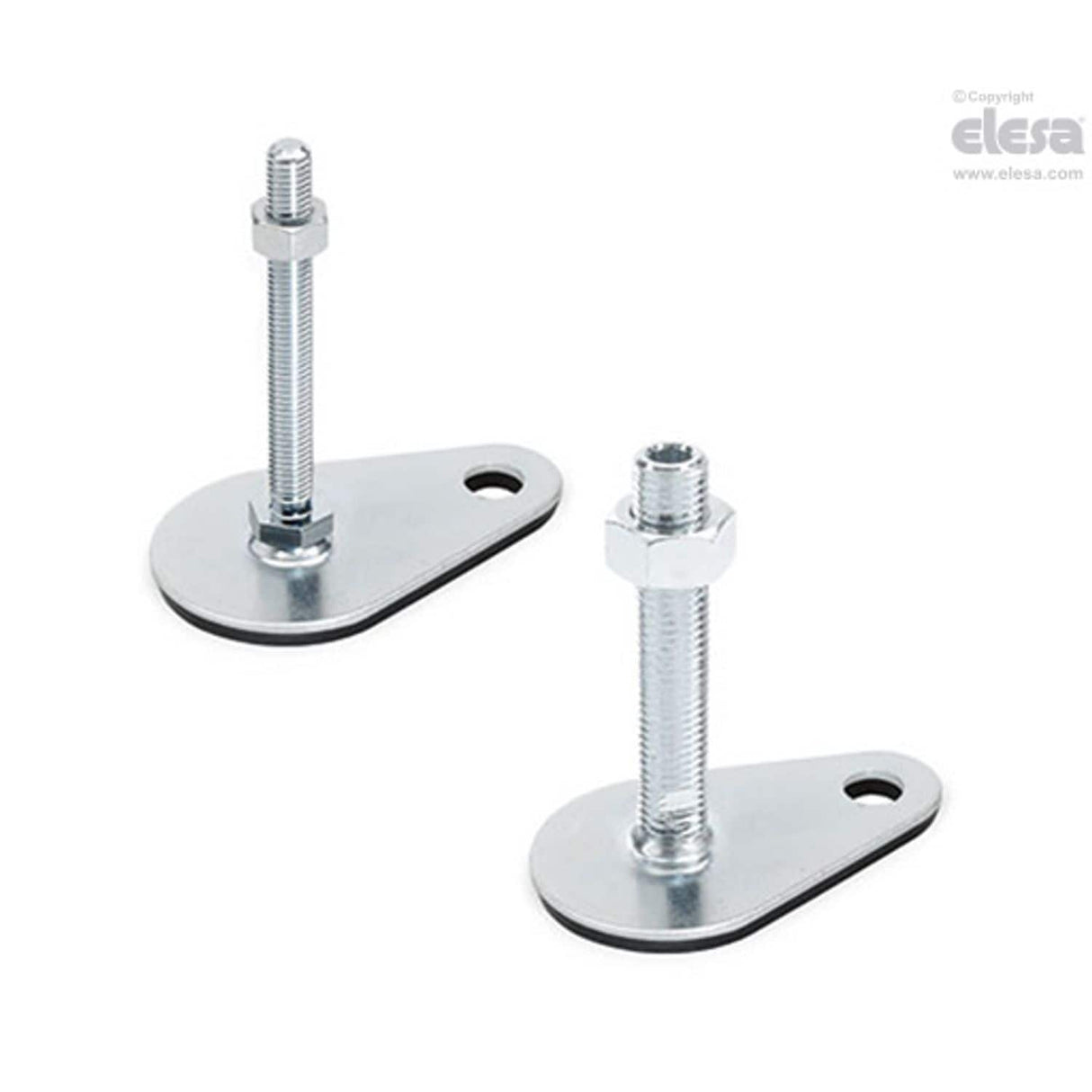

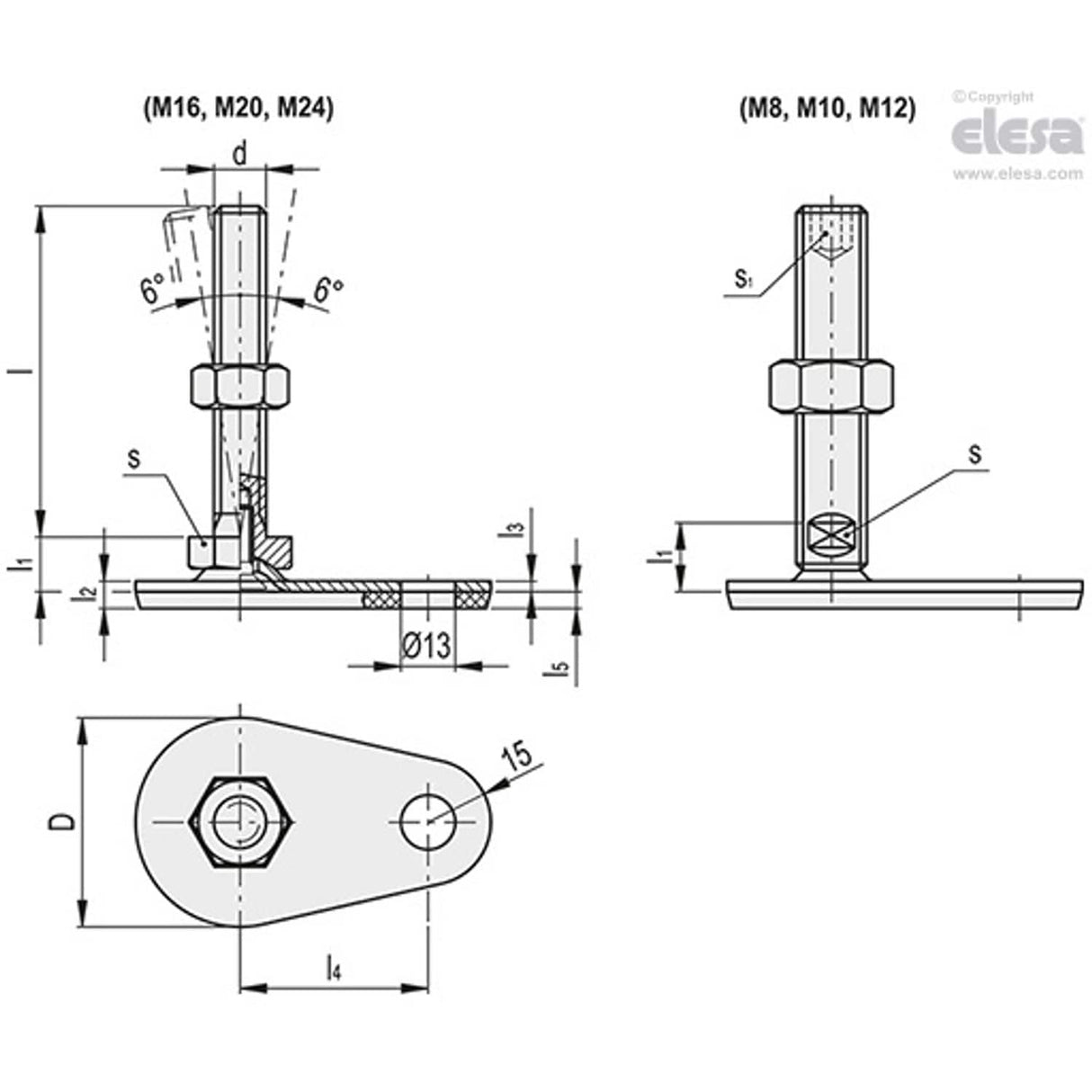

LMP.F Levelling feet for ground mounting, Steel base and stem, Threaded stem, with rubber no-slip disk For product drawing and dimensions refer to pdf Item data sheet.
| l5 | 5 |
| Diameter | 80mm |
| d | M24 |
| s | 19 |
| D | 80 |
| s1 | 12 |
| l4 | 70 |
| l | 200 |
| Max. Static Load | 16000N |
| Weight | 898g |
| MFR Part No. | LMP.F-80-M24x200-TV |
| l2 | 8 |
| l1 | 22 |
| l3 | 3 |
