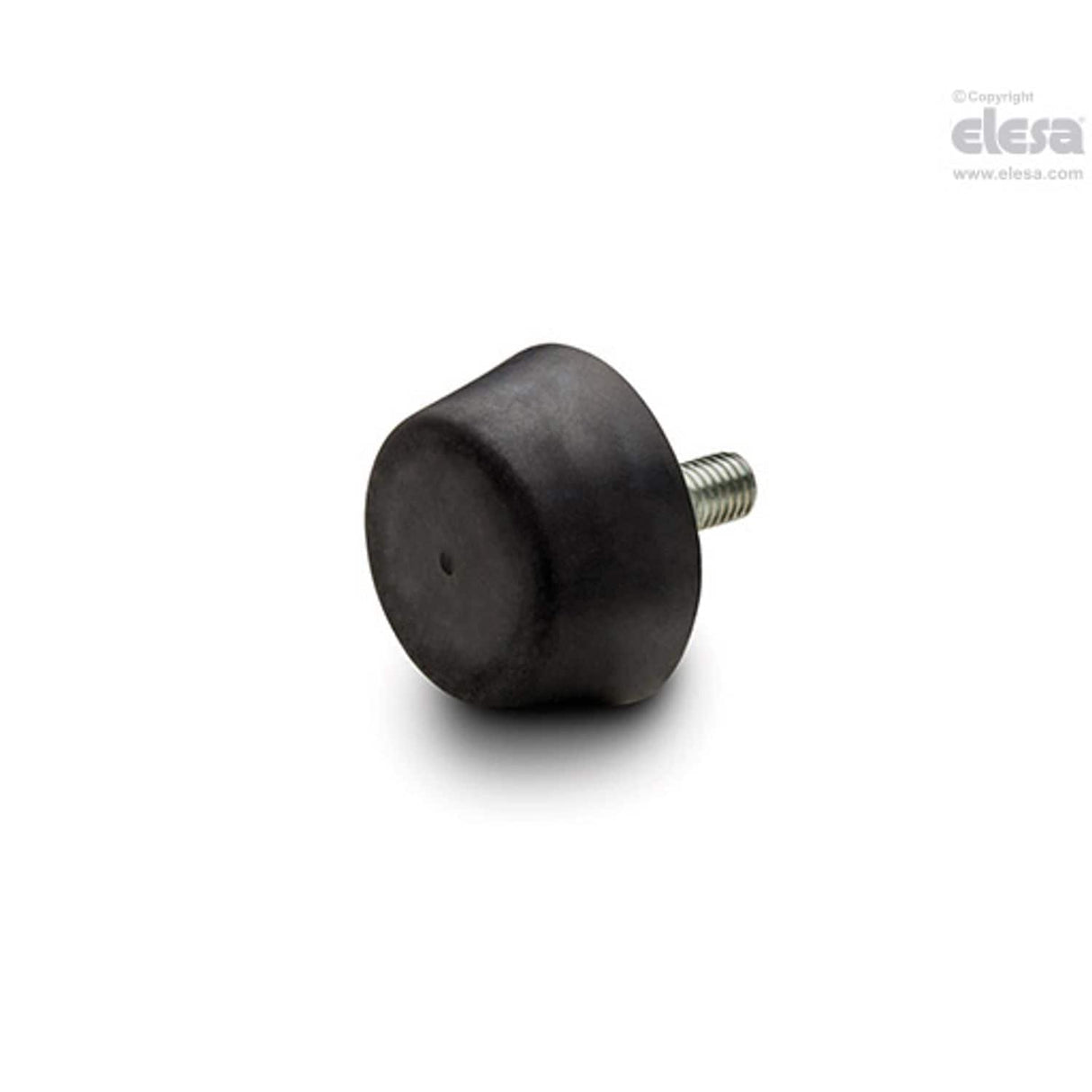

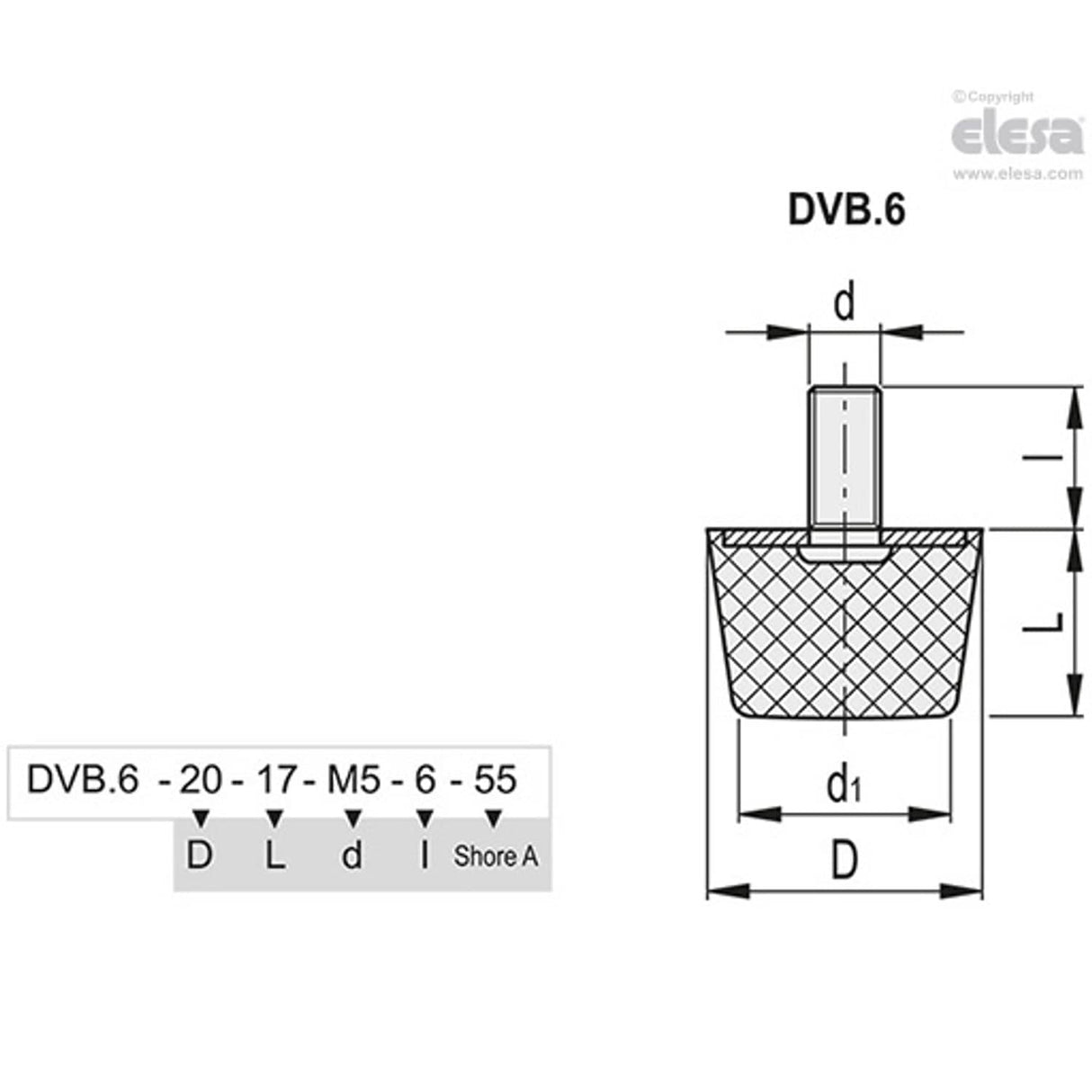

DVB.6 - DVB.7 Rubber buffers, Rubber and steel or stainless steel, Threaded stud For product drawing and dimensions refer to pdf Item data sheet.
| l | 10 |
| D | 38 |
| d1 | 30 |
| Max Load | 840N |
| d | M8 |
| Diameter | 38mm |
| Max. Deflection | 8.75mm |
| L | 35 |
| MFR Part No. | DVB.6-38-35-M8-10-40 |
