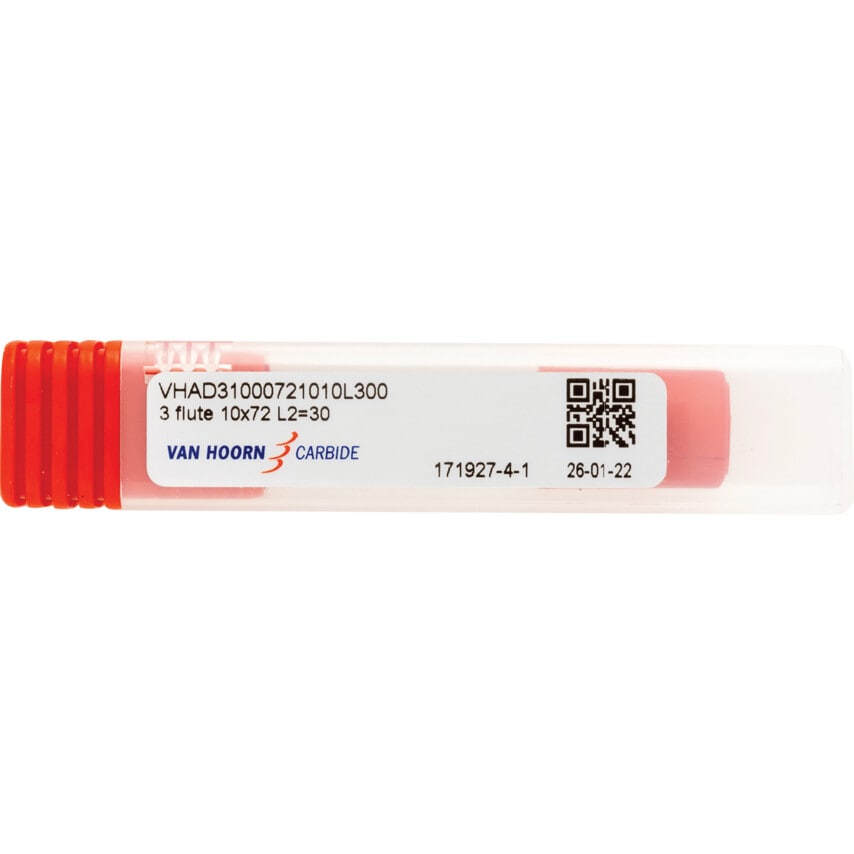

These 3 flute end mills are manufactured from carbide and are ideally suited for machining non-ferrous materials such as aluminium, bronze, lead and copper. Available in a range of sizes and specifications, each end mill is uncoated with a corner radius of 0.2mm and a 45 angle.Features and Benefits Perfect for non-ferrous applications such as machining aluminium, copper, lead and bronze for versatility of use High material removal rates for quick machining Ensures a smooth surface finish for accurate and precise machining results Polished flutes for optimised chip evacuation Excellent chip flow to avoid material blockagesTypical Applications Ideal for use when machining aluminium, copper, bronze, lead or similar non-ferrous materials
| Overall Length | 72mm |
| Shank Diameter | 10mm |
| Material | Carbide |
| Flute Length | 22mm |
| Corner Radius | 0.2mm |
| ISO Category | N |
| Cutter Style | Corner Radius |
| Milling Cutter Type | End Mills |
| System of Measurement | Metric |
| Number of Flutes | 3 |
| Cutter Diameter | 10mm |
| Helix Angle | 45\u00b0 |
| Finish/Coating | Uncoated |
| Shank Type | Plain Round |
| Coolant Delivery | External |
| Flute Type | Helical |
| End Mill Type | Corner Radius |
| Length Type | Regular |
