£1.12
1
of
2
Loading...

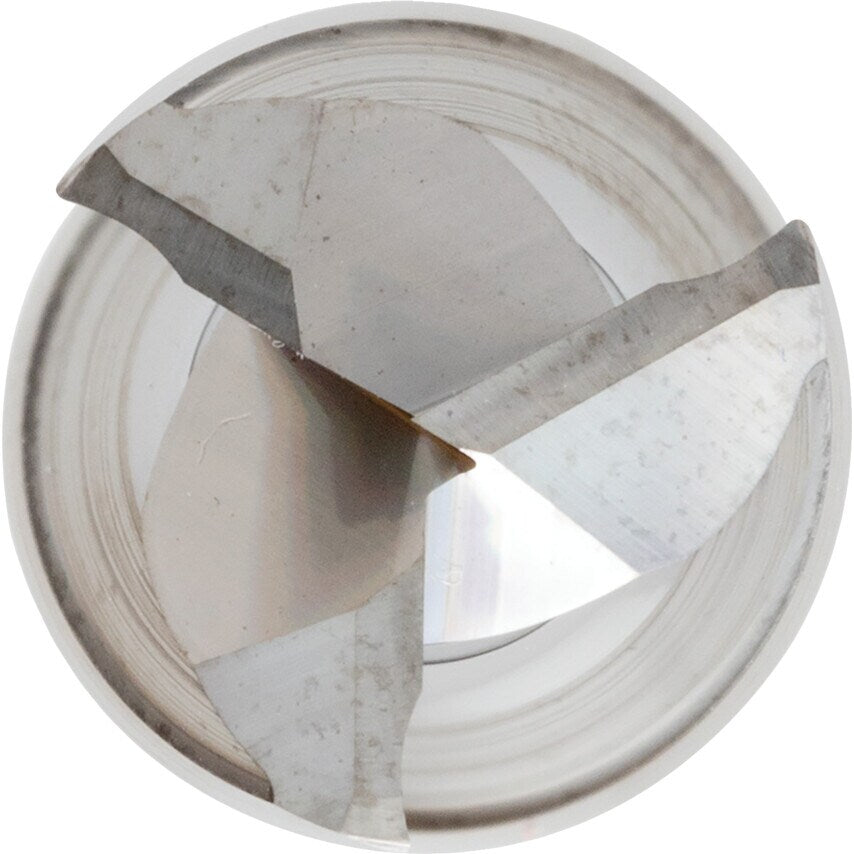

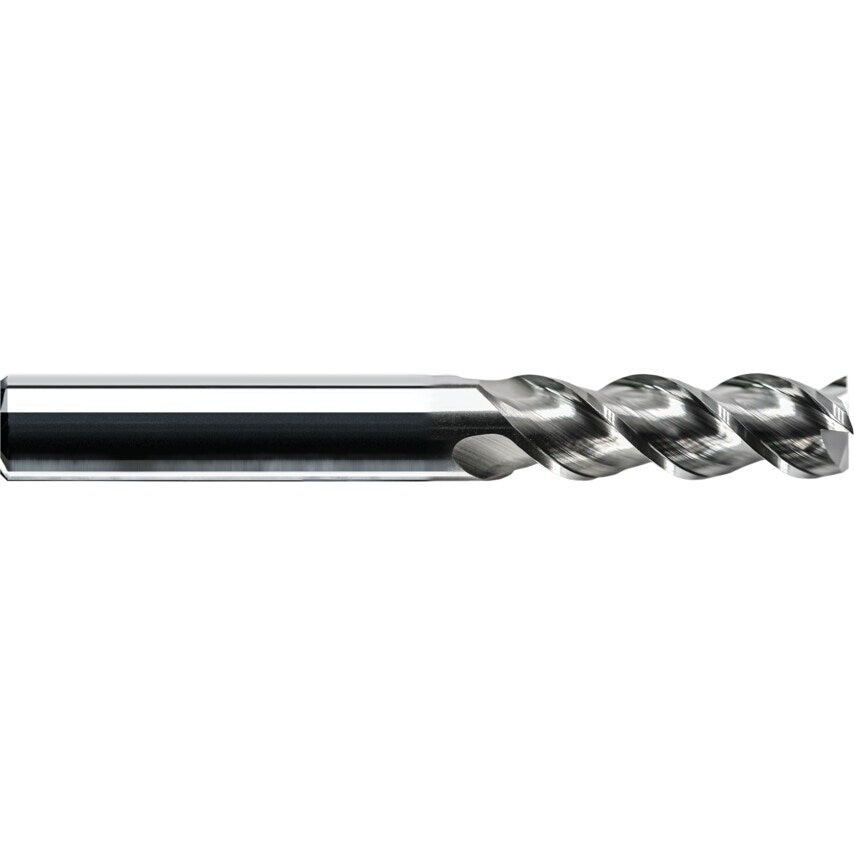

These 3 flute end mills are manufactured from carbide and are ideally suited for machining non-ferrous materials such as aluminium, bronze, lead and copper. Available in a range of sizes and specifications, each end mill is uncoated with a corner radius of 0.2mm and a 45 angle.Features and Benefits Perfect for non-ferrous applications such as machining aluminium, copper, lead and bronze for versatility of use High material removal rates for quick machining Ensures a smooth surface finish for accurate and precise machining results Polished flutes for optimised chip evacuation Excellent chip flow to avoid material blockagesTypical Applications Ideal for use when machining aluminium, copper, bronze, lead or similar non-ferrous materials
| Number of Flutes | 3 |
| Flute Length | 8mm |
| Corner Radius | 0.2mm |
| Coolant Delivery | External |
| Cutter Diameter | 3mm |
| System of Measurement | Metric |
| Helix Angle | 45\u00b0 |
| Shank Type | Plain Round |
| Shank Diameter | 6mm |
| ISO Category | N |
| Overall Length | 57mm |
| Length Type | Regular |
| Milling Cutter Type | End Mills |
| Flute Type | Helical |
| Cutter Style | Corner Radius |
| End Mill Type | Corner Radius |
| Material | Carbide |
| Finish/Coating | Uncoated |
