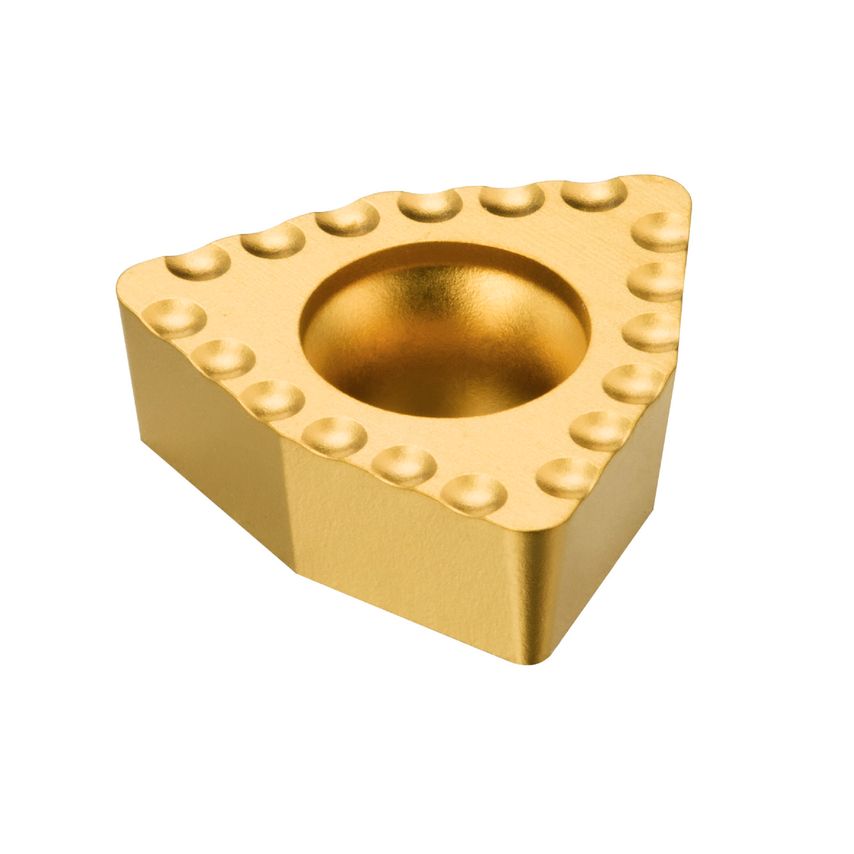

Product Range: Coromant U
| Insert Mounting Style | Screw/Clamp |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Through Hole Function Property | Yes |
| Insert Usage Code | Peripheral |
| Insert Rake Angle | 14\u00b0 |
| Insert Thickness | 3.97mm |
| Corner Radius | 0.8mm |
| Cutting Edge Count | 3 |
| Grade | 235 |
| Inscribed Circle Diameter | 9.53mm |
| Coating Type | TiCN+TiN |
| Weight | 4.5g |
| CoroPak | 89.1 |
| MFR Part No. | 5756149 |
| Unit Measured | Metric |
| Coating Process Type | CVD |
| Fixing Hole Diameter | 3.7mm |
| Insert Shape | Trigon |
| Insert Size | 06T3 |
| Insert Size/Shape | CoroDrill U WC06T3xxP |
