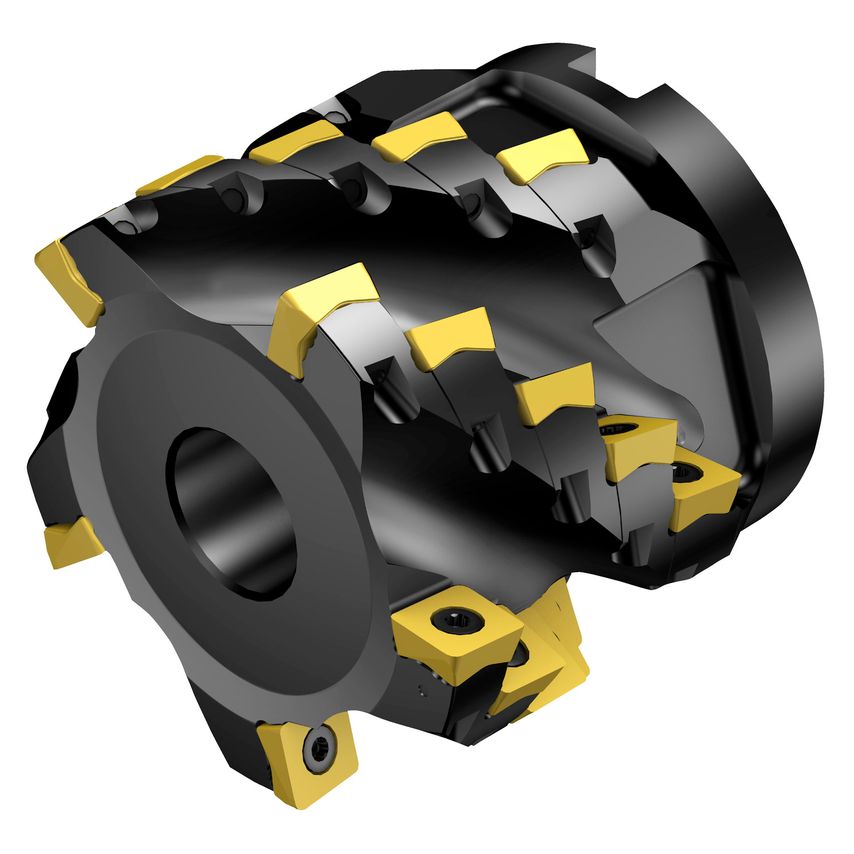

Product Range: CoroMill 690The cutting edge for titanium milling.CoroMill 690 is developed specifically for high-productivity 2D profile milling of titanium components. Inserts are securely fastened by iLock technology. By equipping every insert pocket with threaded coolant holes with nozzles for high pressure coolant delivery, you can apply maximum coolant where required.Features & Benefits-- High-productivity milling of titanium and HRSA-material- 4 cutting edge insert- I-Lock interface for security- Internal coolant

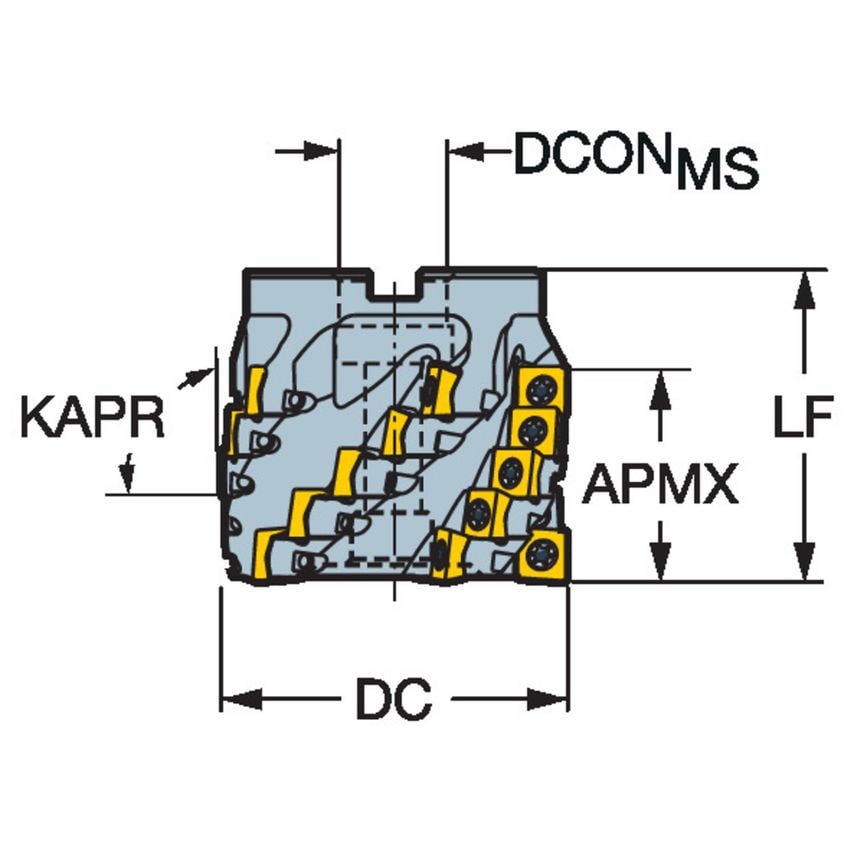

| Coolant Entry Style | Without Coolant |
| Connection Diameter | 38.1mm |
| CoroPak | 11.5 |
| Cutting Diameter | 80mm |
| Maximum Depth of Cut | 46mm |
| Unit Measured | Imperial |
| Tool Cutting Edge Angle | 90\u00b0 |
| Weight | 1kg |
| Body Material | Steel |
| MFR Part No. | 5723641 |
| Material | Steel |
| Maximum Ramping Angle | 0\u00b0 |
| Hand Preference | Right |
| Rotational Speed Maximum | 5000 1/min |
| Through Hole Function Property | Yes |
| Maximum Cutting Depth | 46mm |
| Functional Length | 76mm |
| Center Cutting Capability | 19.05 |
| Standards Met | ISO6462 |
