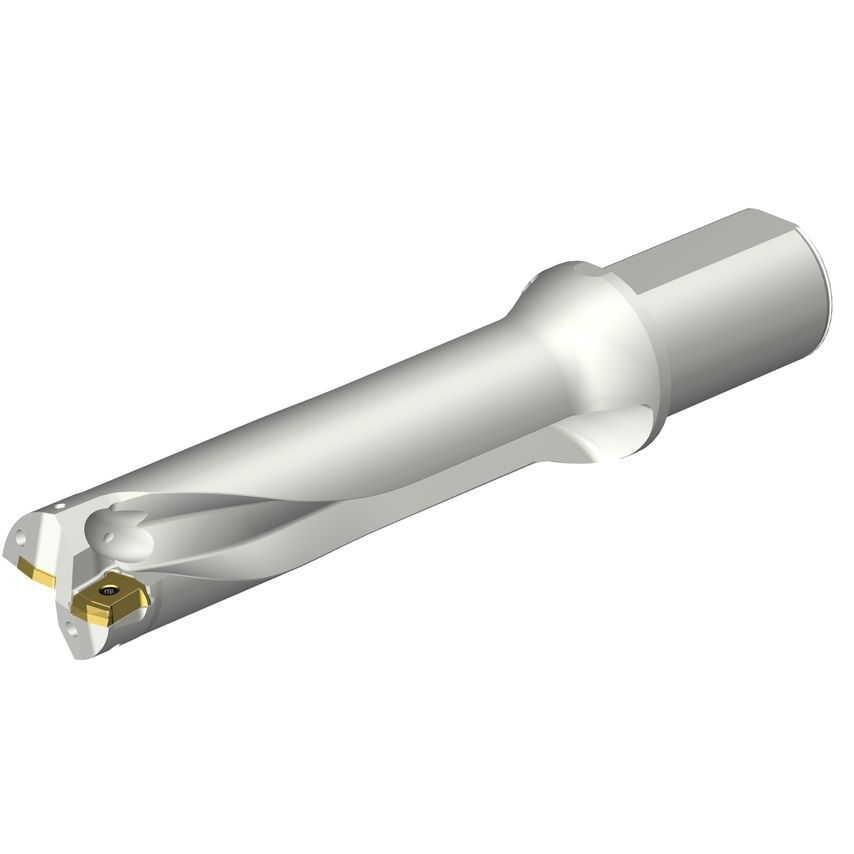

Product Range: CoroDrill DS20Tool Type: Indexable drills47DC insert drill that offers reliability, predictability and outstanding penetration rates.Features & Benefits- First choice for general 4-7 DC drilling operations- Secure and reliable cutting process with high productivity- Versatile drill with good chip formation over a broad cutting data range- Optimized chip control and chip evacuation

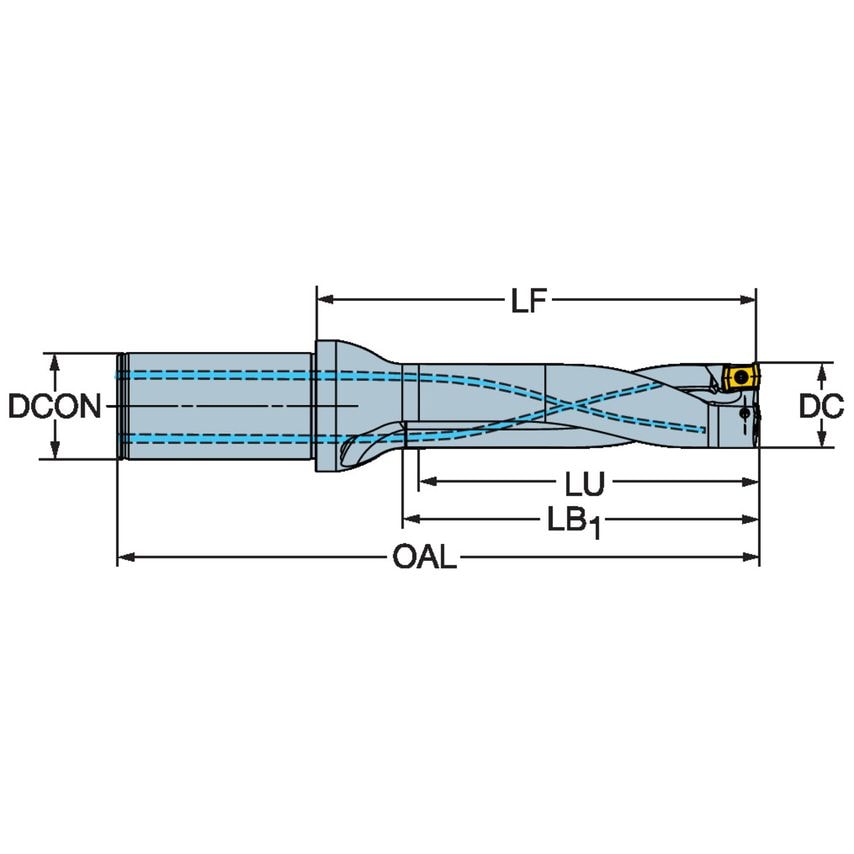

| Tool Cutting Edge Angle | 81\u00b0 |
| Through Hole Function Property | Yes |
| MFR Part No. | 7548994 |
| Connection Diameter | 50mm |
| CoroPak | 20.2 |
| Overall Length | 309mm |
| Usable Length Diameter Ratio | 4.027161702128 |
| Coating Process Type | PVD |
| Functional Length | 227.7234mm |
| Weight | 2.97kg |
| Unit Measured | Metric |
| Maximum Adjustment Limit | 2.11mm |
| Cutting Diameter | 47mm |
| Usable Length | 189.2766mm |
| Coating Type | TiAlN+TiAlN |
| Rotational Speed Maximum | 8000 1/min |
| ISO Cutting Tool Material | Coated WC or Cermet |
