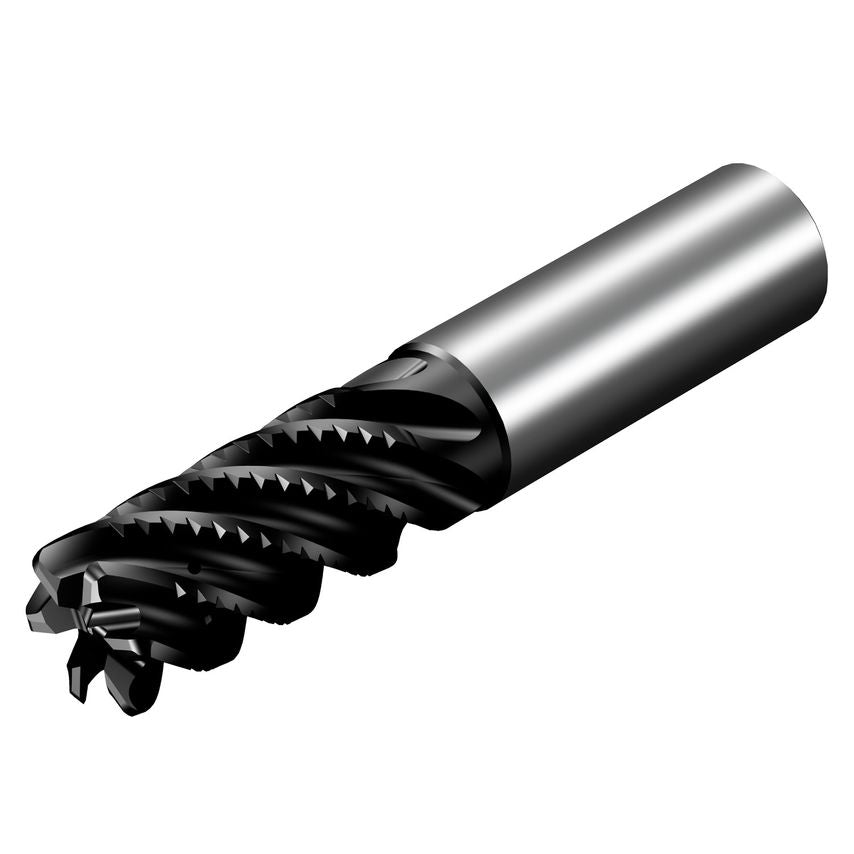

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| CoroPak | 17.2 |
| MFR Part No. | 7440786 |
| Through Hole Function Property | Yes |
| Weight | 72g |
| Product Type | Solid Carbide Endmill |
| Functional Length | 72mm |
| Coating Process Type | PVD |
| Maximum Cutting Depth | 22mm |
| Center Cutting Capability | No |
| Rotational Speed Maximum | 72600 1/min |
| Coating Type | TiAlSiN |
| Unit Measured | Metric |
| Usable Length | 30mm |
| Maximum Ramping Angle | 5\u00b0 |
| Cutting Diameter | 10mm |
| Grade | 1745 |
| Basic Standard Group | Coromant |
| Corner Radius | 2mm |
| Maximum Depth of Cut | 22mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Standards Met | COROMANT |
| Material | Solid Carbide |
| Coolant Entry Style | 1 |
| Shank Type | Cylindrical |
| Connection Diameter | 25mm |
