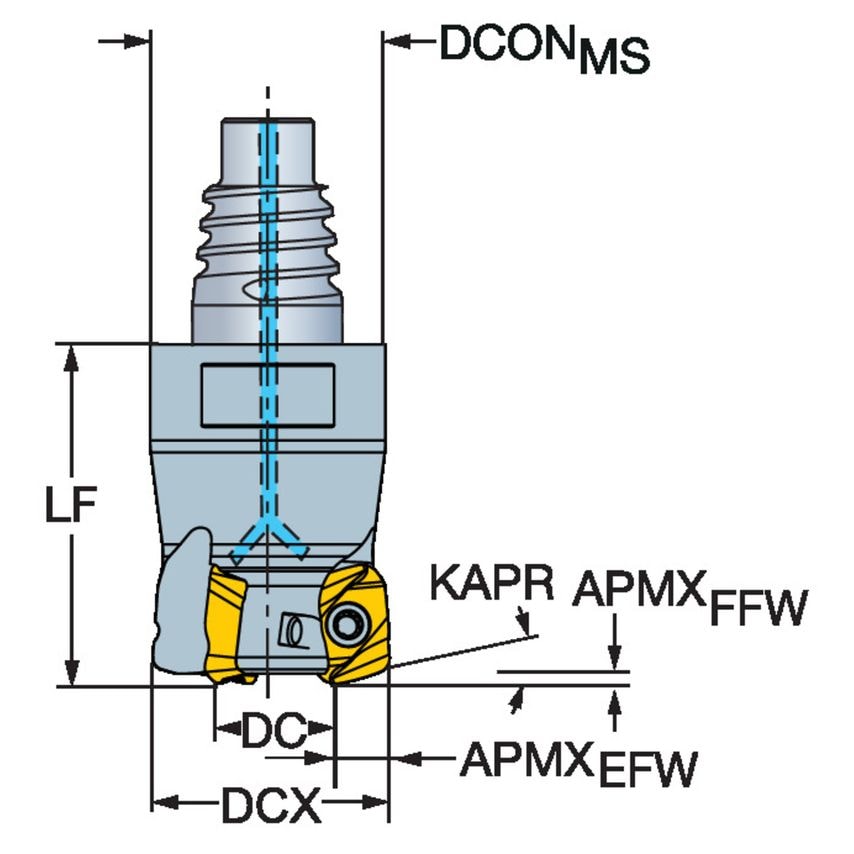

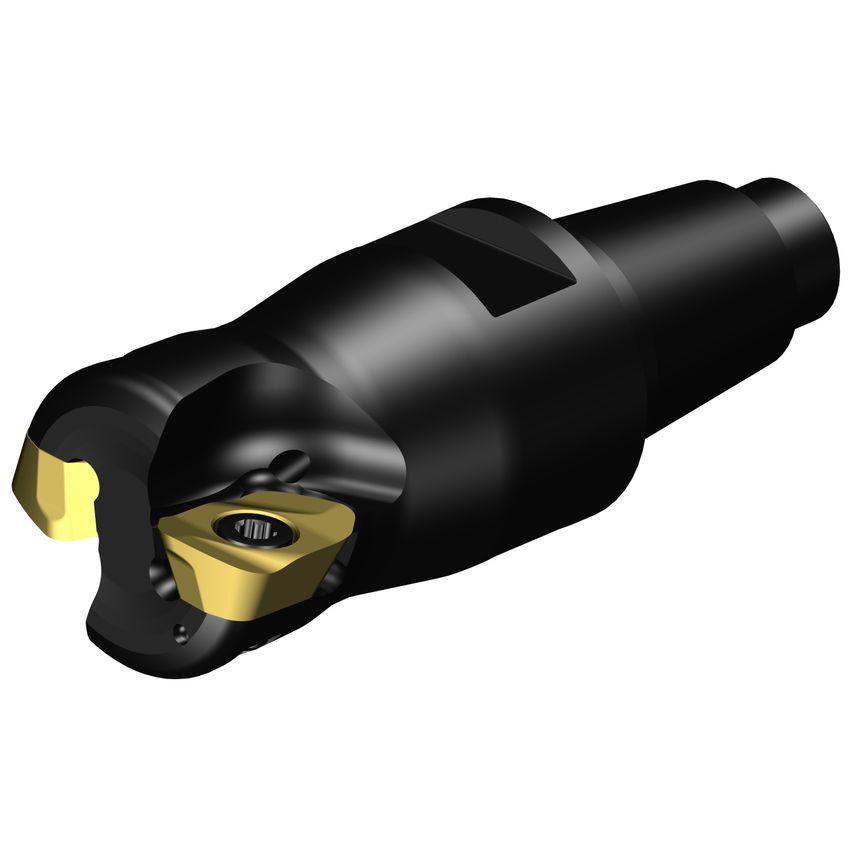

Product Range: CoroMill MH20Tool Type: High-feed millingHigh feed pocket millingFeatures & Benefits- First choice in pocket milling for ISO S, M and P materials- 2 cutting edges- Internal coolant- Ramping capabilities- Robust cutter body- Open insert pocket- Curved edge insert design
| Through Hole Function Property | Yes |
| Damping Property | No |
| Rotational Speed Maximum | 26100 1/min |
| Maximum Ramping Angle | 9.5\u00b0 |
| Connection Diameter | 15.5mm |
| Unit Measured | Metric |
| Hand Preference | Right |
| Body Material | Steel |
| Maximum Cutting Diameter | 16mm |
| Cutting Diameter | 12mm |
| Tool Cutting Edge Angle | 15\u00b0 |
| Functional Length | 27mm |
| MFR Part No. | 8029426 |
| CoroPak | 21.2 |
| Maximum Plunge Depth | 0.7mm |
| Coolant Entry Style | 1 |
