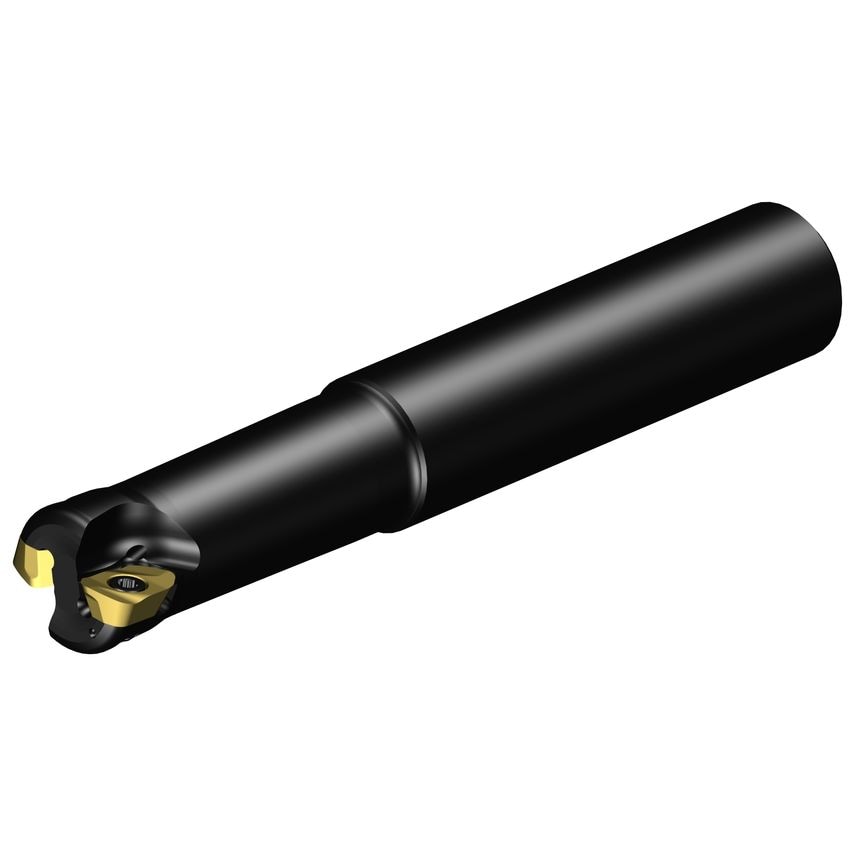

Product Range: CoroMill MH20Tool Type: High-feed millingHigh feed pocket millingFeatures & Benefits- First choice in pocket milling for ISO S, M and P materials- 2 cutting edges- Internal coolant- Ramping capabilities- Robust cutter body- Open insert pocket- Curved edge insert design

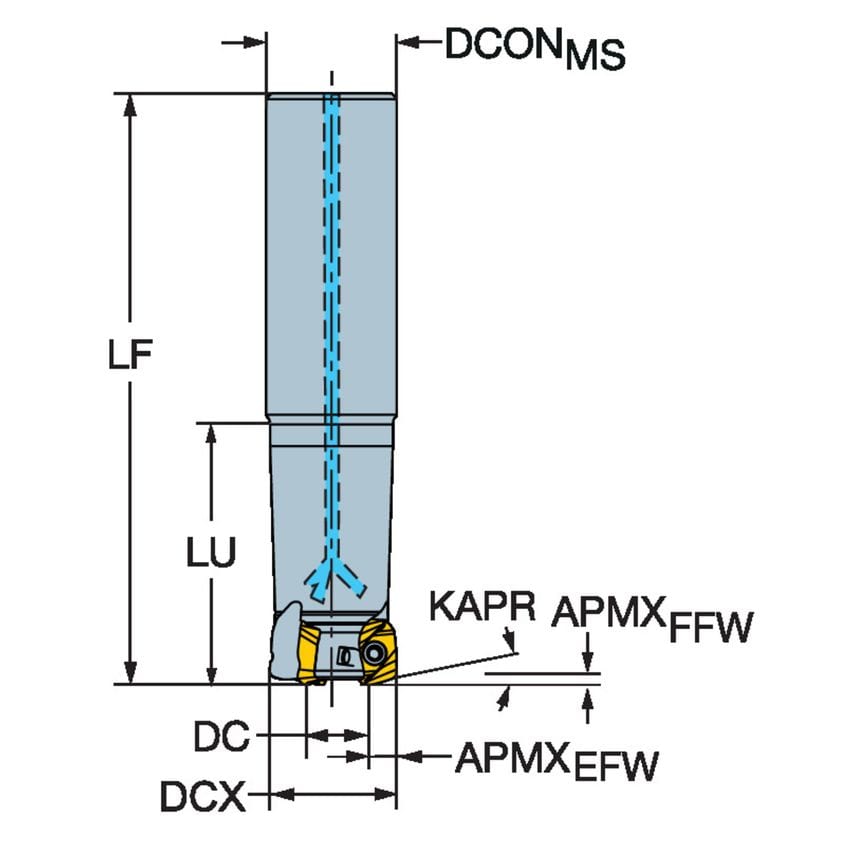

| Hand Preference | Right |
| Maximum Plunge Depth | 0.7mm |
| CoroPak | 21.2 |
| Tool Cutting Edge Angle | 15\u00b0 |
| Usable Length | 40mm |
| Body Material | Steel |
| Rotational Speed Maximum | 23800 1/min |
| Maximum Cutting Diameter | 15.875mm |
| Weight | 0.12kg |
| Cutting Diameter | 11mm |
| Through Hole Function Property | Yes |
| Coolant Entry Style | 1 |
| Connection Diameter | 15.875mm |
| Functional Length | 100mm |
| Maximum Ramping Angle | 10.1\u00b0 |
| Unit Measured | Imperial |
| Damping Property | No |
| MFR Part No. | 8029445 |
