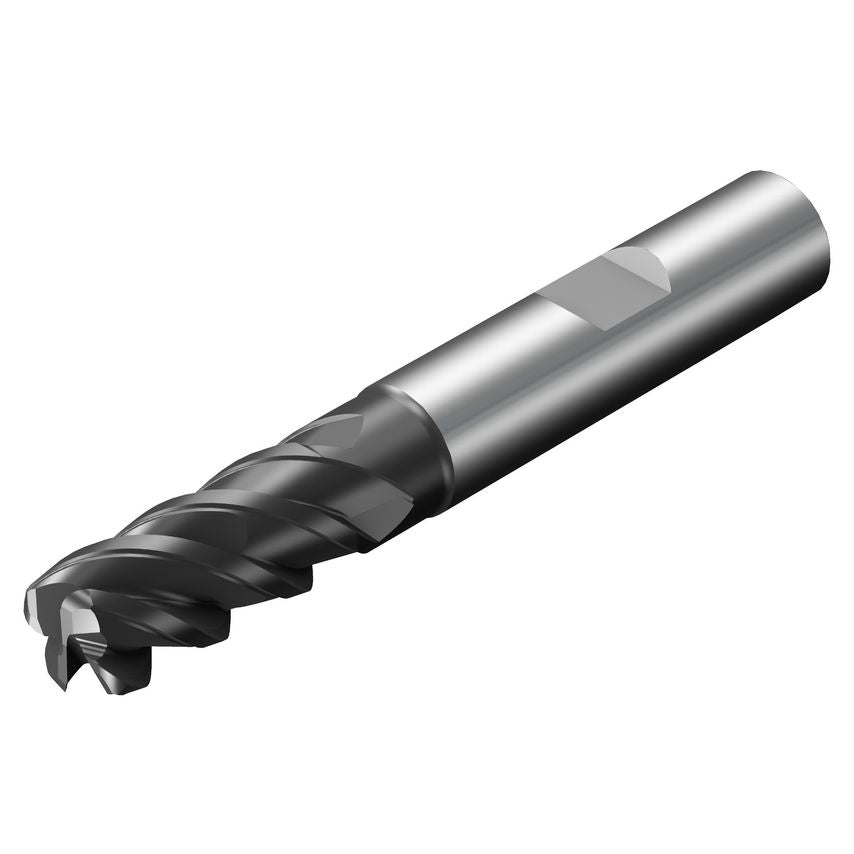

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Unit Measured | Metric |
| Through Hole Function Property | Yes |
| Coating Type | TiAlN |
| Material | Solid Carbide |
| Functional Length | 63mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Product Type | Solid Carbide Endmill |
| Maximum Depth of Cut | 19mm |
| MFR Part No. | 7858251 |
| Basic Standard Group | DIN 6527 L |
| Maximum Cutting Depth | 19mm |
| Coating Process Type | PVD |
| Center Cutting Capability | Yes |
| Cutting Diameter | 8mm |
| Corner Radius | 0.5mm |
| Coolant Entry Style | Without Coolant |
| Usable Length | 25mm |
| Rotational Speed Maximum | 40000 1/min |
| Shank Type | Weldon |
| Connection Diameter | 101.6mm |
| Maximum Ramping Angle | 5\u00b0 |
| Grade | 1725 |
| CoroPak | 20.2 |
| Standards Met | DIN 6527 L |
