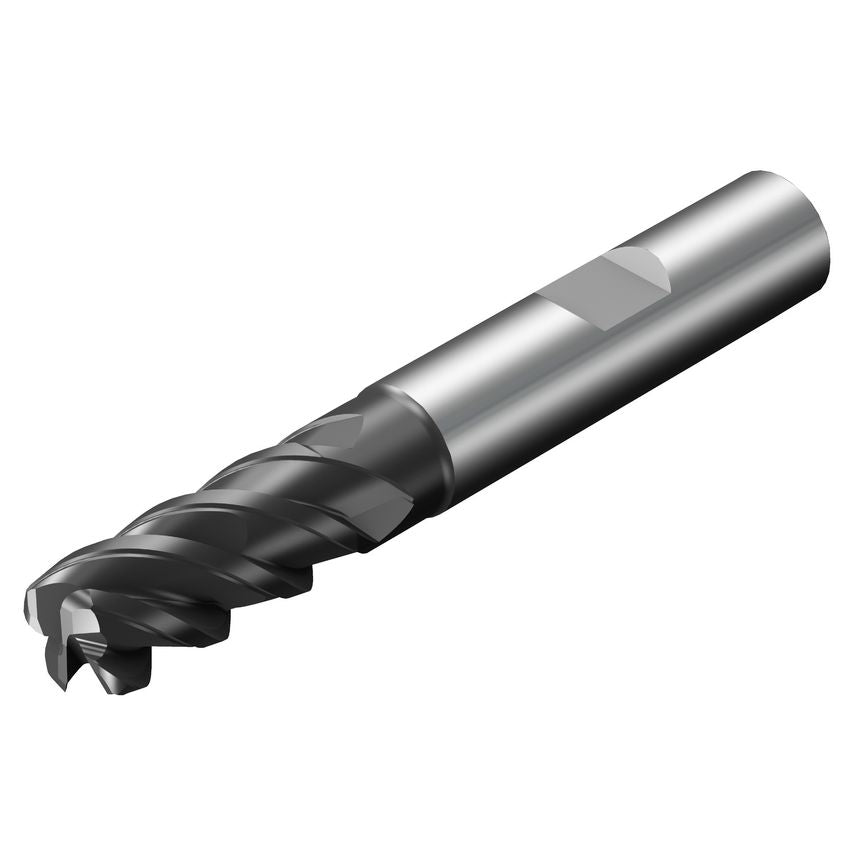

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.

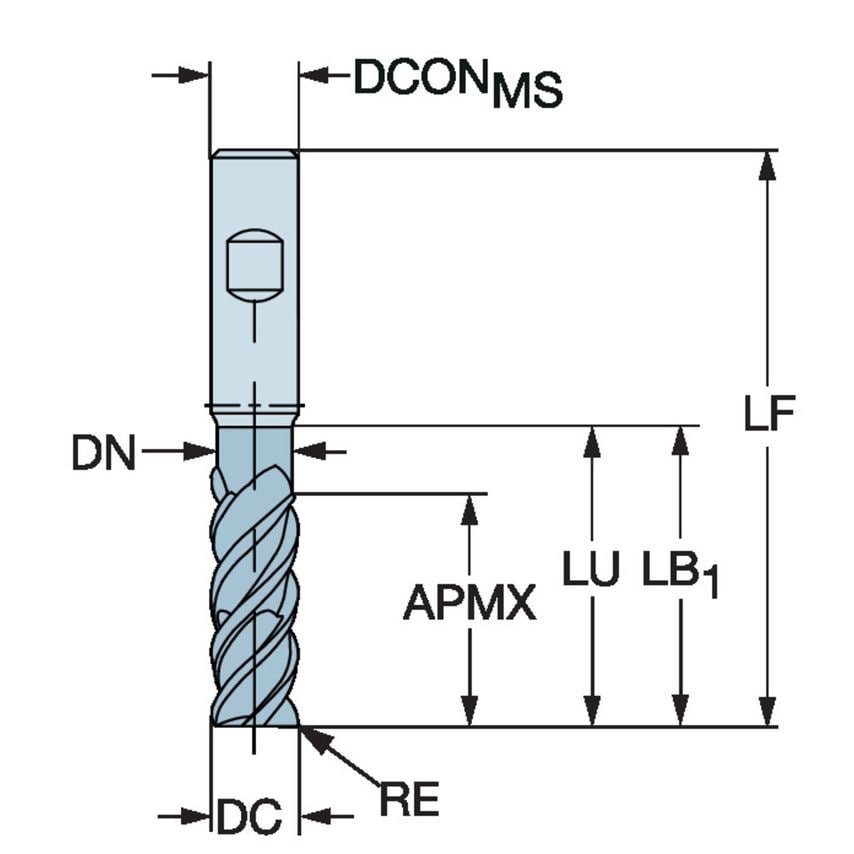

| Corner Radius | 4mm |
| Maximum Ramping Angle | 5\u00b0 |
| MFR Part No. | 7858261 |
| Cutting Diameter | 16mm |
| Coating Type | TiAlN |
| Shank Type | Weldon |
| Connection Diameter | 63mm |
| Coating Process Type | PVD |
| Through Hole Function Property | Yes |
| CoroPak | 20.2 |
| Rotational Speed Maximum | 40000 1/min |
| Standards Met | DIN 6527 L |
| Maximum Cutting Depth | 32mm |
| Product Type | Solid Carbide Endmill |
| Maximum Depth of Cut | 32mm |
| Unit Measured | Metric |
| Usable Length | 42mm |
| Functional Length | 92mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Grade | 1725 |
| Center Cutting Capability | Yes |
| Basic Standard Group | DIN 6527 L |
| Weight | 0.22kg |
| Material | Solid Carbide |
| Coolant Entry Style | Without Coolant |
