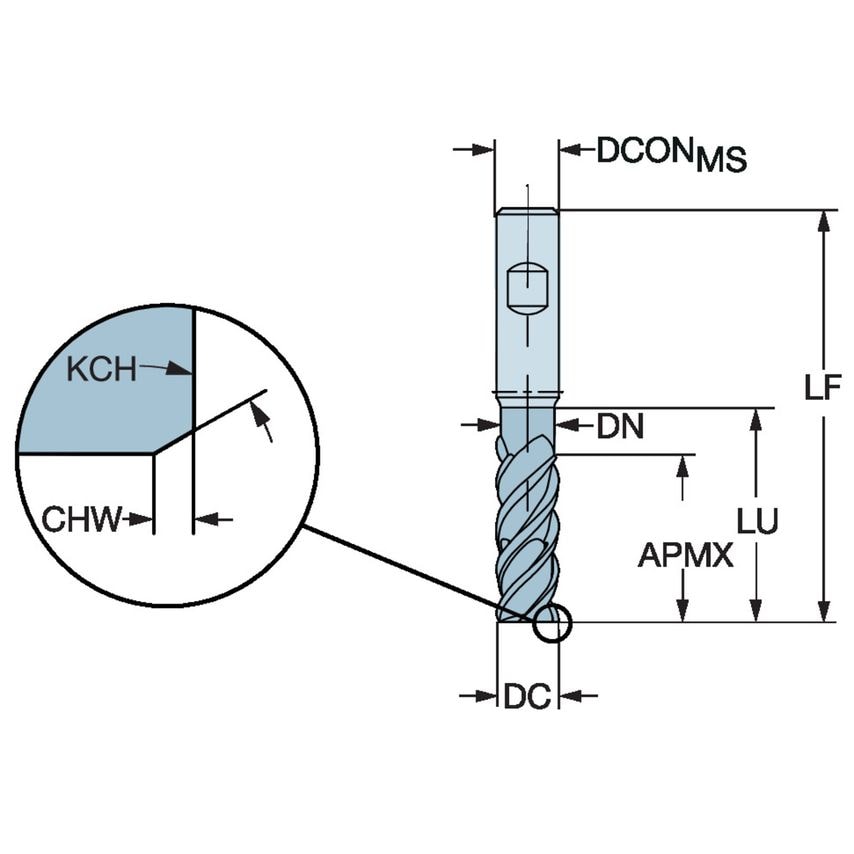

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Coating Process Type | PVD |
| Unit Measured | Metric |
| Basic Standard Group | DIN 6527 L |
| Product Type | Solid Carbide Endmill |
| Maximum Cutting Depth | 19mm |
| Grade | 1725 |
| Cutting Diameter | 8mm |
| Maximum Depth of Cut | 19mm |
| Functional Length | 63mm |
| Coating Type | TiAlN |
| Usable Length | 25mm |
| Standards Met | DIN 6527 L |
| Coolant Entry Style | Without Coolant |
| Center Cutting Capability | Yes |
| Connection Diameter | 101.6mm |
| Through Hole Function Property | Yes |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Maximum Ramping Angle | 5\u00b0 |
| Shank Type | Weldon |
| Rotational Speed Maximum | 40000 1/min |
| Material | Solid Carbide |
| MFR Part No. | 7858266 |
| CoroPak | 20.2 |
