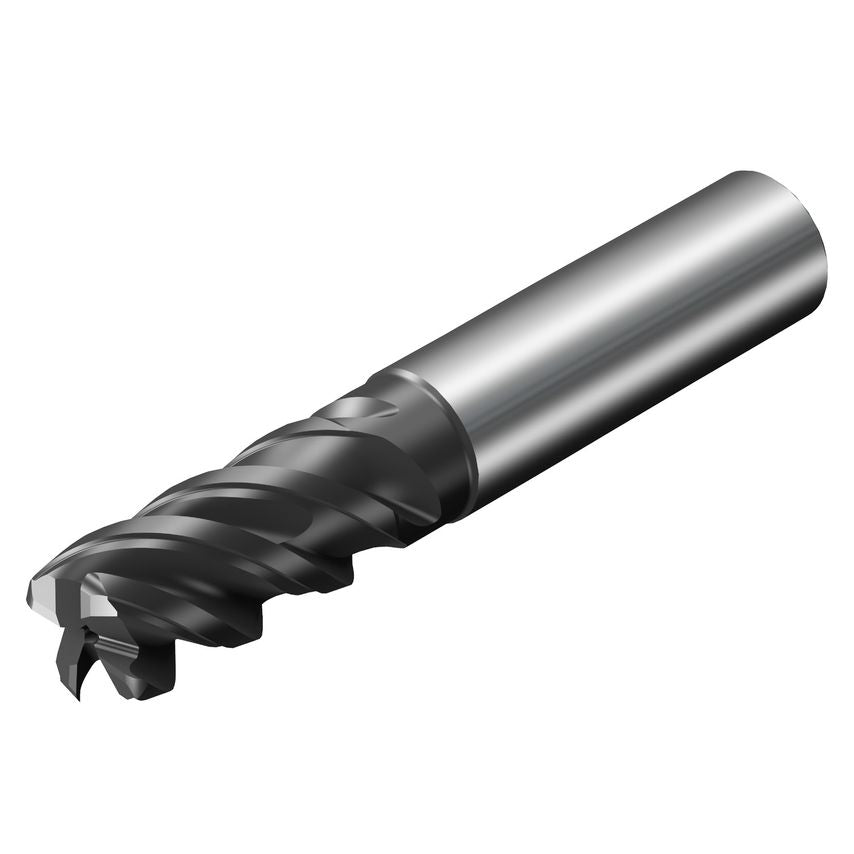

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Maximum Cutting Depth | 19mm |
| Connection Diameter | 101.6mm |
| Shank Type | Weldon |
| Center Cutting Capability | No |
| Maximum Ramping Angle | 5\u00b0 |
| Standards Met | DIN 6527 L |
| Material | Solid Carbide |
| Corner Radius | 1mm |
| Maximum Depth of Cut | 19mm |
| MFR Part No. | 7858274 |
| CoroPak | 20.2 |
| Rotational Speed Maximum | 40000 1/min |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Through Hole Function Property | Yes |
| Functional Length | 63mm |
| Unit Measured | Metric |
| Coating Type | TiAlN |
| Grade | 1725 |
| Coating Process Type | PVD |
| Basic Standard Group | DIN 6527 L |
| Coolant Entry Style | 1 |
| Usable Length | 25mm |
| Cutting Diameter | 8mm |
| Product Type | Solid Carbide Endmill |
