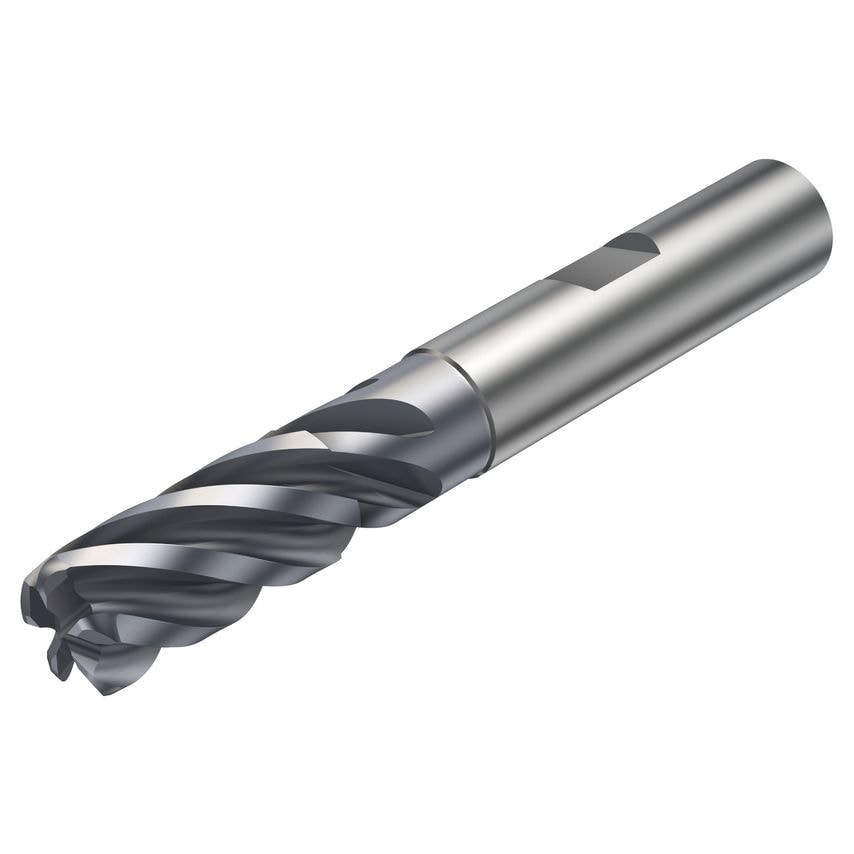

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| Maximum Cutting Depth | 22mm |
| Rotational Speed Maximum | 63700 1/min |
| Usable Length | 30mm |
| MFR Part No. | 7716310 |
| Functional Length | 72mm |
| CoroPak | 20.1 |
| Basic Standard Group | Coromant |
| Standards Met | COROMANT |
| Material | Solid Carbide |
| Coating Process Type | PVD |
| Through Hole Function Property | Yes |
| Maximum Depth of Cut | 22mm |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Grade | 1730 |
| Cutting Diameter | 10mm |
| Maximum Ramping Angle | 7\u00b0 |
| Unit Measured | Metric |
| Connection Diameter | 10mm |
| Coating Type | AlCrN |
| Corner Radius | 2mm |
| Center Cutting Capability | No |
| Coolant Entry Style | Without Coolant |
