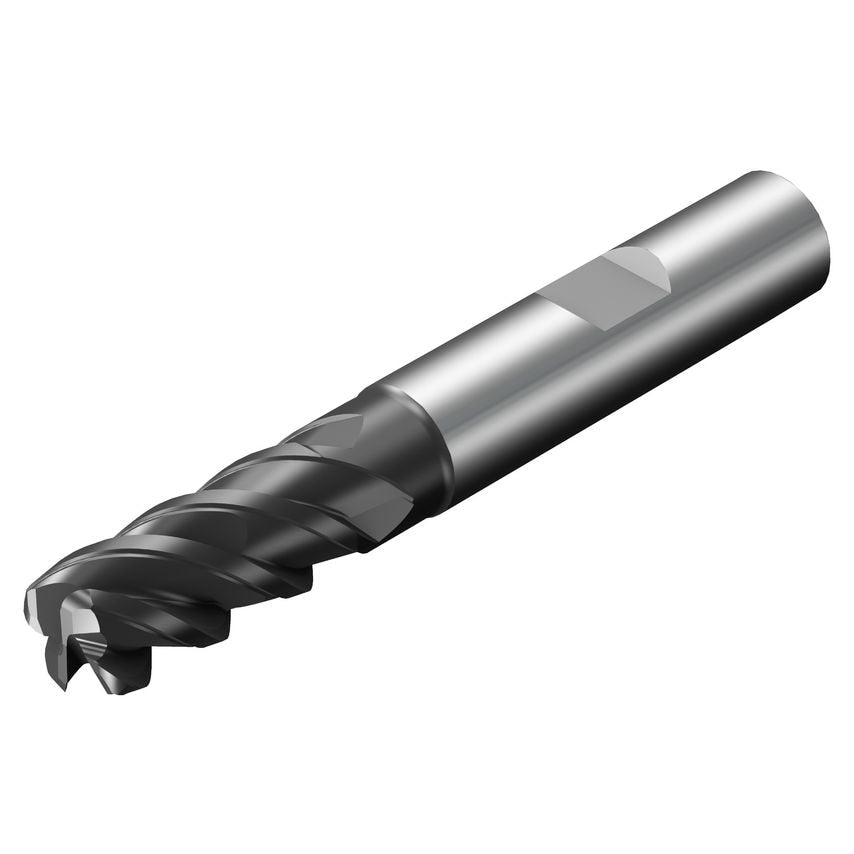

Product Range: CoroMill PluraTool Type: Thread millingSmall diameter shoulder milling with close tolerancesCoroMill Plura is a range of high quality solid carbide end mills that offer productive, efficient, and perfectly reliable milling solutions. Featuring tools for heavy roughing, finishing, and thread milling, CoroMill Plura works in various applications and materials, including difficult-to-cut materials and very hard steels up to 63 HRc.
| CoroPak | 20.2 |
| Maximum Ramping Angle | 5\u00b0 |
| Product Type | Solid Carbide Endmill |
| Coating Type | TiAlN |
| Unit Measured | Imperial |
| Coating Process Type | PVD |
| Material | Solid Carbide |
| ISO Cutting Tool Material | Coated WC or Cermet |
| Maximum Cutting Depth | 19.84mm |
| Through Hole Function Property | Yes |
| Coolant Entry Style | Without Coolant |
| Rotational Speed Maximum | 40000 1/min |
| Cutting Diameter | 9.525mm |
| Basic Standard Group | Coromant |
| Grade | 1725 |
| Maximum Depth of Cut | 19.84mm |
| Standards Met | COROMANT |
| MFR Part No. | 7858291 |

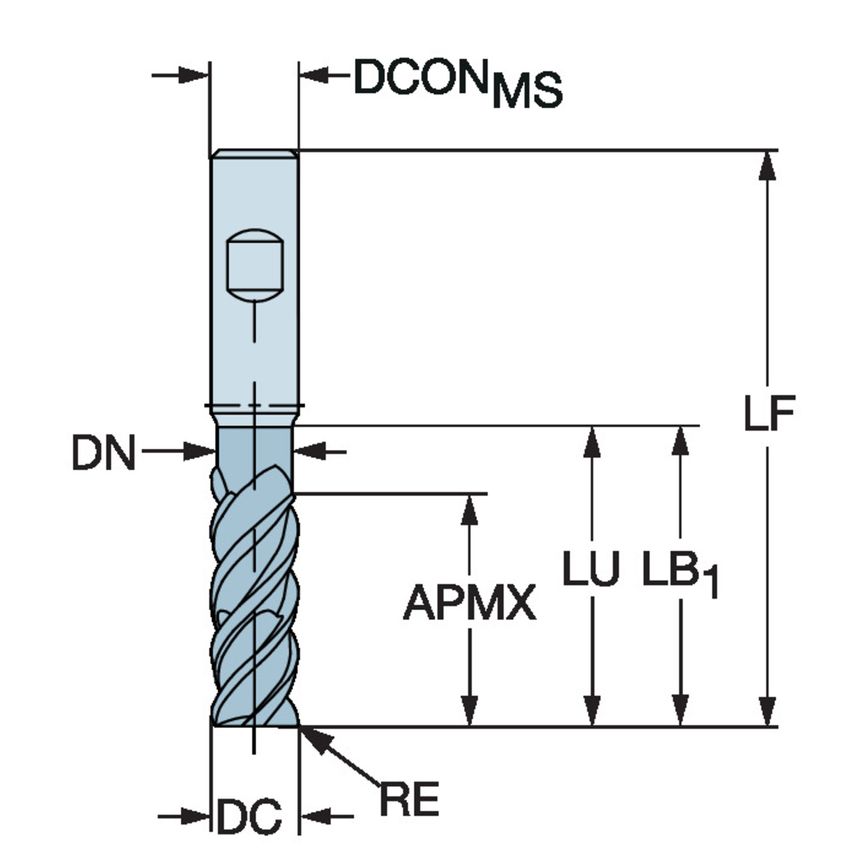

| Connection Diameter | 38.1mm |
| Usable Length | 29.37mm |
| Functional Length | 76.2mm |
| Center Cutting Capability | Yes |
| Shank Type | Weldon |
| Corner Radius | 0.762mm |
