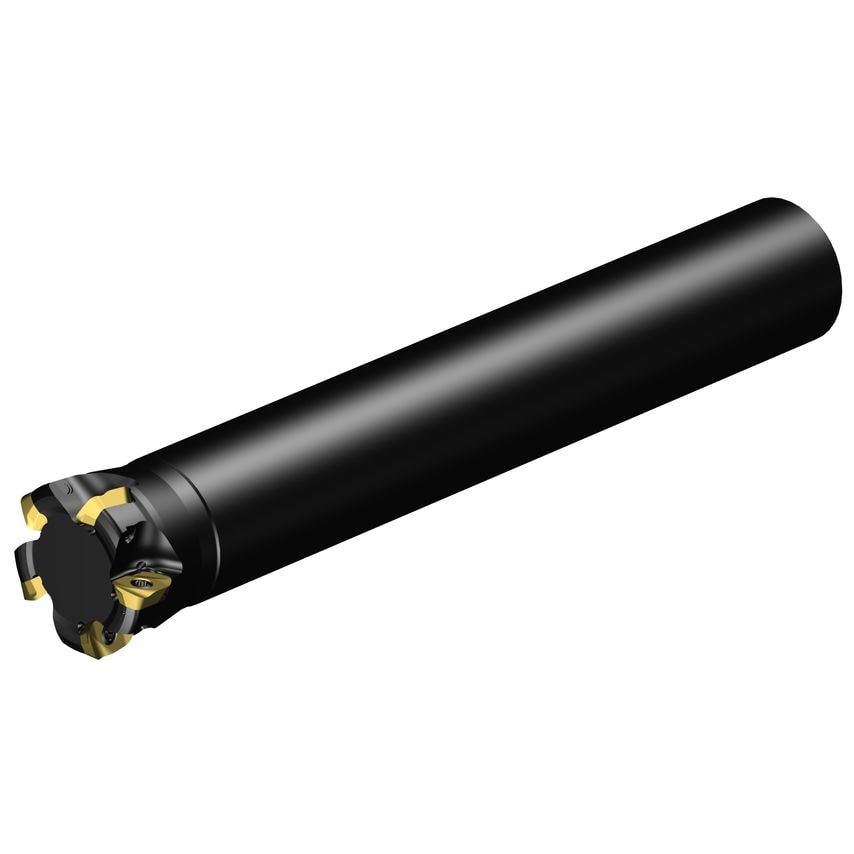

Product Range: CoroMill MH20Tool Type: High-feed millingHigh feed pocket millingFeatures & Benefits- First choice in pocket milling for ISO S, M and P materials- 2 cutting edges- Internal coolant- Ramping capabilities- Robust cutter body- Open insert pocket- Curved edge insert design
| Damping Property | No |
| Maximum Ramping Angle | 2.7\u00b0 |
| Tool Cutting Edge Angle | 15\u00b0 |
| Functional Length | 210mm |
| Coolant Entry Style | 1 |
| Hand Preference | Right |
| CoroPak | 21.2 |
| Weight | 1.23kg |
| Maximum Cutting Diameter | 38.1mm |
| Cutting Diameter | 9.5mm |
| Through Hole Function Property | Yes |
| MFR Part No. | 8097014 |
| Connection Diameter | 31.75mm |
| Usable Length | 80mm |
| Maximum Plunge Depth | 0.9mm |
| Rotational Speed Maximum | 16900 1/min |
| Unit Measured | Imperial |
| Body Material | Steel |
