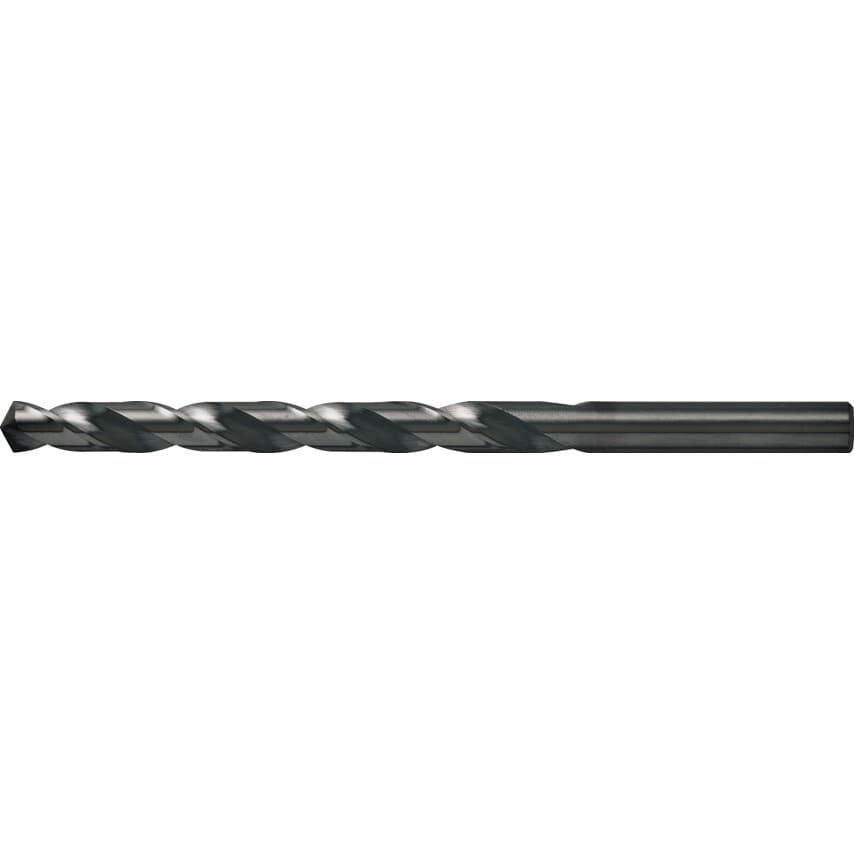

13/32" HSS S/S Jobber Drill

The J100 Series are general purpose HSS straight shank drills with a black oxide finish. Ideal for applications involving steel (including cast steel) cast iron (Including malleable cast iron) as well as nickel, brass aluminium alloys and graphite. Their 118 point allows for precise hole alignment and reliable cutting performance whilst the black oxide coating helps reduce heat by retaining coolant on the tool surface. It also helps reduce the risk of the tool staining. Features and Benefits General purpose drills with a black oxide finish Ideal for applications involving steel, iron, nickel, brass, aluminium alloy and graphite Point angle of 118 for precise holemaking and precision cutting Black oxide coating helps aid chip flow, reduce heat and prevent staining Standards Manufactured to BS 328/DIN338RN Typical Applications Cutting and drilling Ferrous materials

Standards Met	BS 328 | DIN 338
Number of Flutes	2
Point Type	Split Point
Cutting Direction	Right Hand
Material Grade	Steel Grade 4241
Shank Diameter Tolerance	F11
Point Angle	118\u00b0
Finish/Coating	Black Oxide
Web Thickness	Standard
Flute Construction	Ground flutes
Coolant Delivery	External
Flute Type	Spiral
Drill Diameter Tolerance	H8
Drill Diameter	13/32in
Helix Type	Normal Helix
Material	HSS
