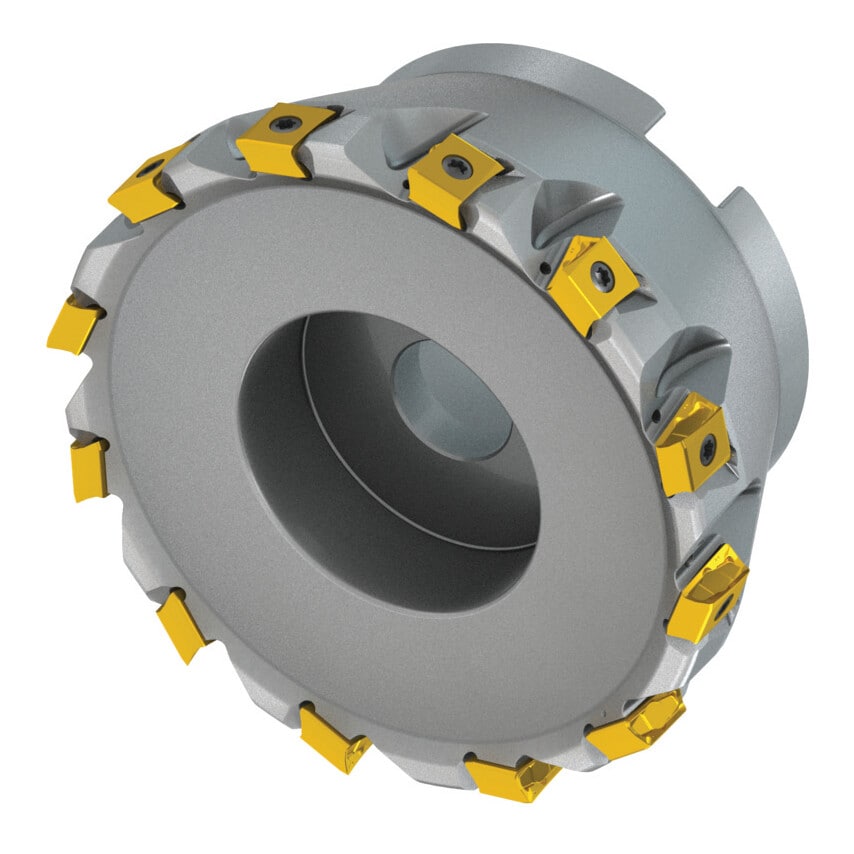

125A12R-S90LN12X-C LN12 90 Tangential Face Mill

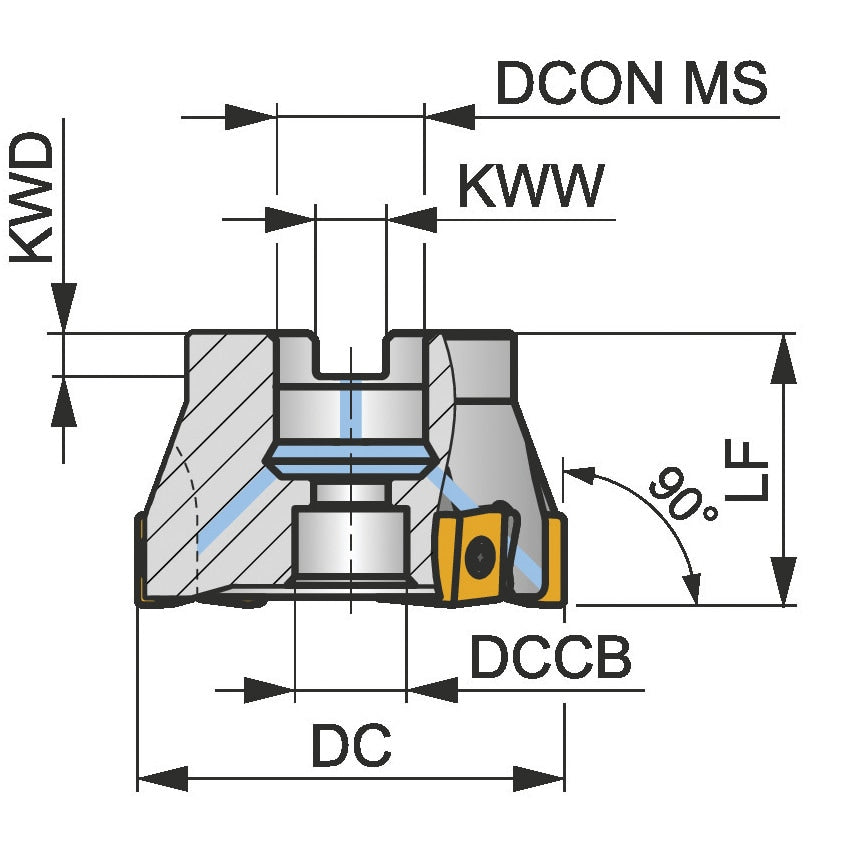

Shoulder mill with double negative geometry utilising 12 double-sided inserts. Cutting diameter of 125mm with a 90 approach angle and a 40mm connection bore according to DIN 8030-A. 63mm functional and, through coolant and differential pitch for face milling, shallow shoulder milling, deep shoulder milling, plunge milling and shallow slot milling with a maximum depth of cut of 10mm. Features and Benefits Internal coolant for improved tool life Improved chip evacuation provides high surface quality and reliability Easily accessible large clamping screws for easy handling of inserts Low vibrations and long tool life for both insert and cutter Typical Applications Hardened Metals Cast Iron Stainless Steel Steel Cast Steel High-temperature alloys

Height	63mm
Cutting Edge Angle	90\u00b0
Insert Shape	Rectangle
ISO Designation	125A12R-S90LN12X-C
Coolant Delivery	Coolant Through
Toolholder Material	Steel
Milling Application	Facing | Helical Interpolation | Plunging | Ramping | Shouldering | Slotting
Maximum Cutting Diameter	125mm
Number of Inserts	12
Toolholder Style	Square Shoulder Mill
Product Type	Tangential Face Mill
MFR Part No.	8185938
Insert Size	1210
