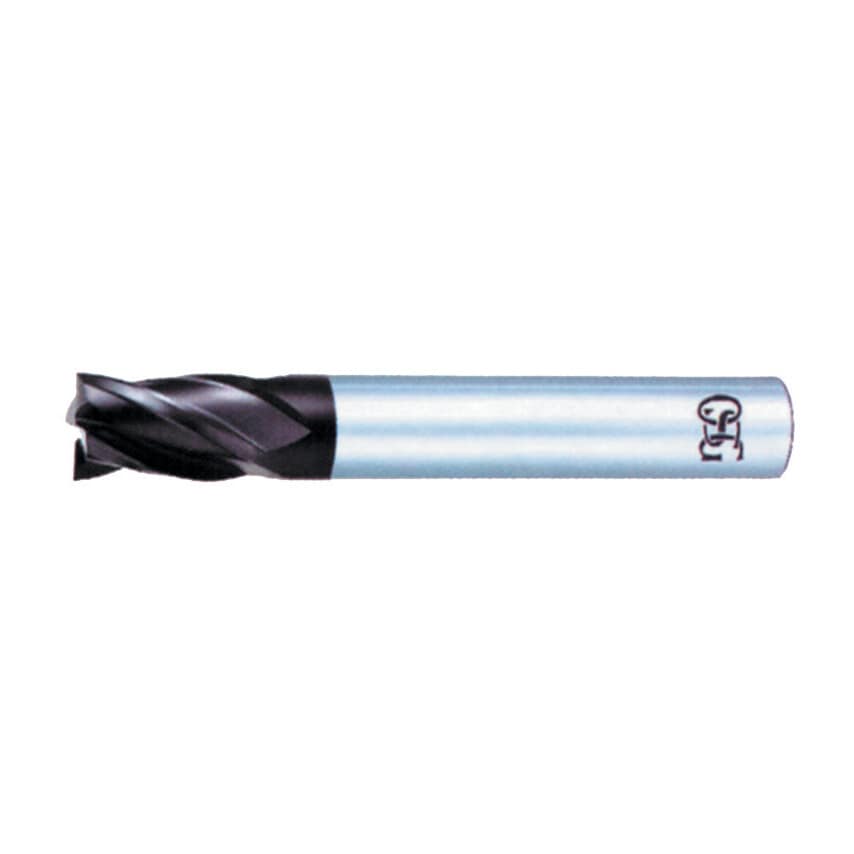

OSG WX-G-EMSS 4 flute short series endmills are manufactured from high performance micro grain carbide with an Ultra WX coating (multi layered composite TiALN).
Centre cutting. Cutting length: 1.5 x D.
The Ultra WX coating has been developed to improve performance in a wide range of materials including nonferrous materials, mild steels, and refined steels This stable performance remains consistent in both wet and dry applications and is intended for a wide range of cutting conditions, from low speed/reduced cutting force applications to high speed/high cutting force applications.
For all technical and dimensional specifications please refer to our catalogue.
| Coolant Delivery | External |
| Milling Cutter Type | End Mills |
| System of Measurement | Metric |
| Series | WX-G-EMSS |
| Product Type | End Mills |
| Shank Type | Weldon Flat |
| Cutter Style | Square End |
| Length Type | Short |
| MFR Part No. | 3019420 |
| Cutter Diameter | 12mm |
| Finish/Coating | Ultra WX |
| Number of Flutes | 4 |
| Material | Carbide |
| Flute Type | Helical |
