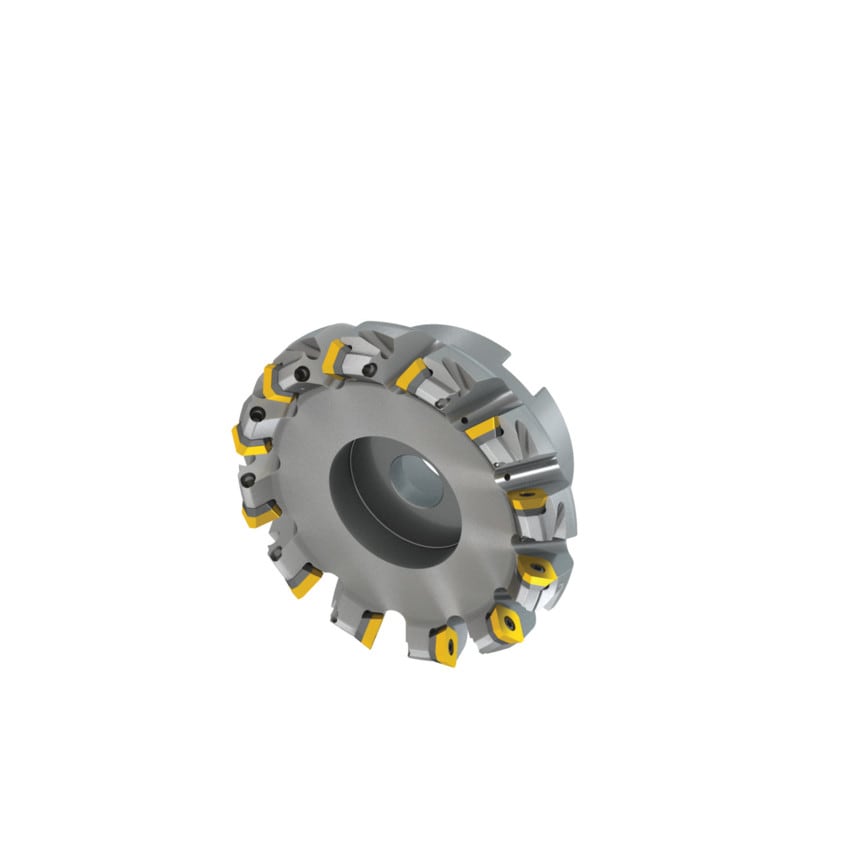

125A12R-S45SD13F-C Ver SD13 45 Face Mill

Nickelized steel face mill with positive/negative geometry utilising 8 single-sided inserts. Cutting diameter ranges from 100mm to 112.9mm with a 45 approach angle and a 32mm connection bore according to DIN 8030-A. 50mm functional and, through coolant and differential pitch for face milling and chamfering with a maximum depth of cut of 6.4mm. Features and Benefits Internal coolant for improved tool life Improved chip evacuation provides high surface quality and reliability Carbide shim on cutter seating place provides extra protection and durability Typical Applications Hardened Metals Cast Iron Stainless Steel Steel High-temperature alloys

Number of Inserts	12
Toolholder Style	Face Mill
Height	63mm
Insert Shape	Square
Insert Size	13T3
Cutting Edge Angle	45\u00b0
Coolant Delivery	Coolant Through
MFR Part No.	8202790
Maximum Cutting Diameter	137.8mm
Toolholder Material	Steel
ISO Designation	125A12R-S45SD13F-C
Milling Application	Facing | Helical Interpolation | Plunging | Ramping
